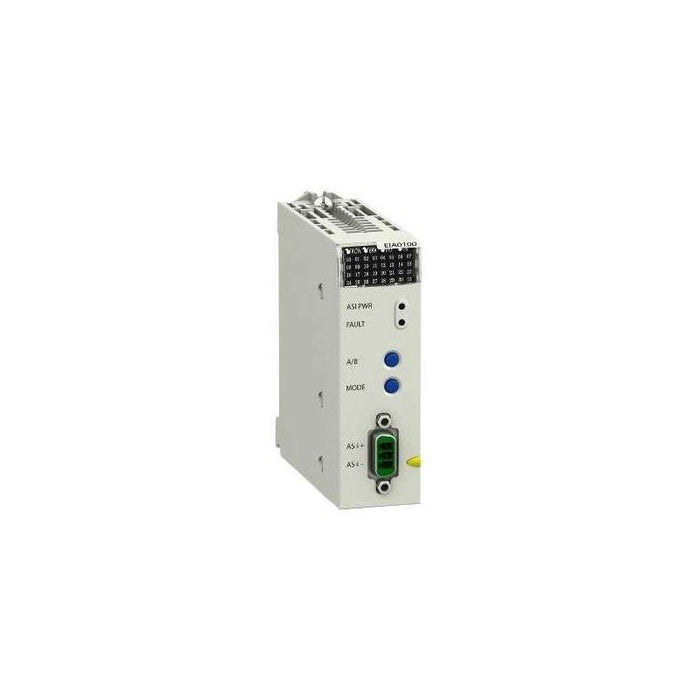

This product is part of the Modicon X80 range, a common platform of modules for Modicon M580 and M340 Programmable Automation Controllers (PAC). This master module supports up to 62 I/O discrete devices and up to 31 I/O analogue devices. It is a master module with a current consumption of 160mA at 3.3V DC. This product is robust, high quality and based on the latest innovative technology. It is furnished with 3-way SUB-D male connector for electrical connection. It is an IP20 rated product. Maximum cable distance between devices is 100m, 200m line extension, 300m 2 repeaters, 500m 2 repeaters and the master at the middle. It weighs 0.34kg. It is suitable for medium to large process applications. It meets EN 61131-2, EN 61000-6-4, EN 61000-6-2 and EN 61010-2-201 standards. Modicon X80 consists in a compatible modules common platform that reduce maintenance and training costs with same spare parts in stock, and unique training for different Programmable Automation Controllers (PAC).
Main
| Characteristic | Value(s) |
|---|---|
| Range of Product | Modicon X80 |
| Product or Component Type | Master module |
| Actuator sensor interface profile [AS-i] | M4 master profile S7.3 slave profile S7.A.7 slave profile S7.A.A slave profile S7.A.8 slave profile S7.A.9 slave profile S6.0.X slave profile |
| Addressing | Standard and extended |
Complementary
| Characteristic | Value(s) |
|---|---|
| Cycle time | 5 ms 31 10 ms 62 |
| Electrical connection | 1 male connector SUB-D, 3 pins |
| Number of server device(s) | 124 server device(s) for discrete inputs and outputs - standard 124 server device(s) for analog inputs and outputs - standard 496 server device(s) for discrete inputs and outputs - extended 124 server device(s) for analog inputs and outputs - extended |
| Maximum cable distance between devices | 328.08 ft (100 m) 656.2 ft (200 m) line extension 984.3 ft (300 m) 2 repeaters 1640.4 ft (500 m) 2 repeaters and the master at the middle |
| Local signalling | 1 LED (green) for module active (RUN) 1 LED (red) for module error (ERR) 1 LED (green) for displays the group of 31 slaves (A/B) 1 LED (red) for I/O module fault (I/O) 32 LEDs for diagnostics of the AS-Interface and each slave 1 LED (green) for ASI power 1 LED (red) for fault |
| Current consumption | 160 mA 3.3 V DC |
| Module format | Standard |
| Product Weight | 0.75 lb(US) (0.34 kg) |
All PLC Direct products come with a 1-year warranty. The warranty is issued by PLC Direct. Warranty coverage commences at the date of purchase. The warranty is for mechanical defects or failures not caused by human factors including but not limited to (a) incorrect installation, (b) operating the unit in sub-optimal conditions or in scenarios not recommended by the manufacturer, (c) poor unit maintenance, etc. The warranty does not cover programming or software related issues.
If the product is eligible for PLC Direct’s warranty coverage and the customer encounters an issue with the product, we will request the item is shipped to us for diagnosis and examination. Regardless of the cause of product issues, the customer will bear responsibility for the cost of shipping the unit to PLC Direct for evaluation. Where the unit was damaged by human factors, we will offer a repair or replace quote; in cases where damage was caused by human factors, the customer is responsible for the cost of shipping the repaired/replaced unit from PLC Direct to the customer. Where the unit was not damaged by human factors but is covered by PLC Direct’s warranty, we will repair or replace the unit at our cost (or, in rare cases, refund you your purchase); in such cases, PLC Direct will bear the cost of shipping the repaired or replaced product back to the customer. It is up to PLC Direct’s discretion whether to repair, replace, or refund the customer in such cases. Diagnoses can take time to complete based on technician availability and the complexity of diagnosis.
In no event shall PLC Direct be liable for any damages except actual damages up to, but not exceeding, the amount paid to us for the product, including we shall not be liable for any consequential or indirect damages or lost profits whether or not advised of same.
PLC Direct offers free shipping worldwide. Product ship from a various warehouses worldwide based on the customer's and the product's location. The estimated delivery date on the product page is PLC Direct's best estimated assuming a US-based shipping destination.
Regardless of where the product is shipping from, PLC Direct covers all duties for US-based shipping destinations. For non-US-based shipping destinations, customers are responsible for duties as appropriate.
PLC Direct's focus is on balancing price with lead time. Some but not all products can be expedited. If you have questions about delivery ETAs, please contact our team.
