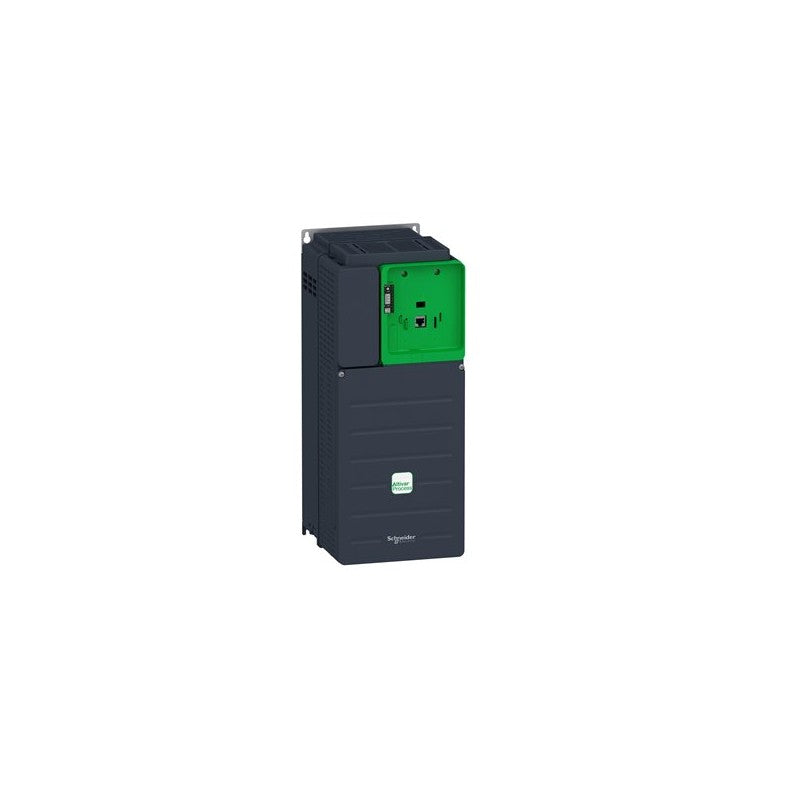

ATV930D15N4Z Schneider Electric

Main

Characteristic Value(s)
Range of Product Altivar Process ATV900
Device Application Industrial Application
Product or Component Type Variable speed drive
Product destination Asynchronous motors
Synchronous motors
Product Specific Application Process for industrial
Variant With braking chopper
Standard version
Phase 3 phase
Mounting Mode Cabinet mount
Communication Port Protocol Modbus serial
Modbus TCP
EtherNet/IP
[Us] rated supply voltage 380...480 V - 15...10 %
Continuous output current 31.7 A 4 kHz normal duty
23.5 A 4 kHz heavy duty
EMC filter Integrated
With EMC plate option
IP degree of protection IP21
option module Slot A communication module Profibus DP V1
Slot A communication module PROFINET
Slot A communication module DeviceNet
Slot A communication module EtherCAT
Slot A communication module CANopen daisy chain RJ45
Slot A communication module CANopen SUB-D 9
Slot A communication module CANopen screw terminals
Slot A/slot B/slot C digital and analog I/O extension module
Slot A/slot B/slot C output relay extension module
Slot B 5/12 V digital encoder interface module
Slot B analog encoder interface module
Slot B resolver encoder interface module
communication module Ethernet Powerlink
Discrete input logic 16 preset speeds
Motor power kW 15.0 kW normal duty
11.0 kW heavy duty
Asynchronous motor control profile Variable torque standard
Optimized torque mode
Constant torque standard
Synchronous motor control profile Permanent magnet motor
Synchronous reluctance motor
Maximum output frequency 599 Hz
Switching frequency 2...16 kHz adjustable
4...16 kHz with derating factor
Nominal switching frequency 4 kHz
Line current 27.0 A 380 V normal duty)
20.6 A 380 V heavy duty)
23.3 A 480 V normal duty)
18.1 A 480 V heavy duty)
Apparent power 19.4 kVA 480 V normal duty)
15 kVA 480 V heavy duty)
Maximum transient current 38 A 60 s normal duty)
35.3 A 60 s heavy duty)
Network Frequency 50-60 Hz
Prospective line Isc 50 kA

Complementary

Characteristic Value(s)
Discrete input number 10
Discrete input type DI1...DI8 programmable, 24 V DC <= 30 V)3.5 kOhm
DI7, DI8 programmable as pulse input 0…30 kHz, 24 V DC <= 30 V)
STOA, STOB safe torque off, 24 V DC <= 30 V)> 2.2 kOhm
Discrete output number 2
Discrete output type Logic output DQ+ 0…1 kHz <= 30 V DC 100 mA
Programmable as pulse output DQ+ 0…30 kHz <= 30 V DC 20 mA
Logic output DQ- 0…1 kHz <= 30 V DC 100 mA
Analogue input number 3
Analogue input type AI1, AI2, AI3 software-configurable voltage 0...10 V DC 30 kOhm 12 bits
AI1, AI2, AI3 software-configurable current 0...20 mA/4...20 mA 250 Ohm 12 bits
Analogue output number 2
Analogue output type Software-configurable voltage AQ1, AQ2 0...10 V DC 470 Ohm 10 bits
Software-configurable current AQ1, AQ2 0...20 mA 500 Ohm 10 bits
Relay output number 3
Relay output type Configurable relay logic R1 fault relay NO/NC 100000 cycles
Configurable relay logic R2 sequence relay NO 1000000 cycles
Configurable relay logic R3 sequence relay NO 1000000 cycles
Maximum switching current Relay output R1 resistive, cos phi = 1 3 A 250 V AC
Relay output R1 resistive, cos phi = 1 3 A 30 V DC
Relay output R1 inductive, cos phi = 0.4 7 ms 2 A 250 V AC
Relay output R1 inductive, cos phi = 0.4 7 ms 2 A 30 V DC
Relay output R2, R3 resistive, cos phi = 1 5 A 250 V AC
Relay output R2, R3 resistive, cos phi = 1 5 A 30 V DC
Relay output R2, R3 inductive, cos phi = 0.4 7 ms 2 A 250 V AC
Relay output R2, R3 inductive, cos phi = 0.4 7 ms 2 A 30 V DC
Minimum switching current Relay output R1, R2, R3 5 mA 24 V DC
Physical interface Ethernet
2-wire RS 485
Connector Type 2 RJ45
1 RJ45
Method of access Slave Modbus TCP
Transmission Rate 10, 100 Mbits
4.8 kbps
9600 bit/s
19200 bit/s
Transmission frame RTU
Number of addresses 1…247
Data format 8 bits, configurable odd, even or no parity
Type of polarization No impedance
4 quadrant operation possible True
Acceleration and deceleration ramps Linear adjustable separately from 0.01...9999 s
Motor slip compensation Adjustable
Not available in permanent magnet motor law
Automatic whatever the load
Can be suppressed
Braking to standstill By DC injection
Brake chopper integrated True
Maximum Input Current per Phase 27.0 A
Maximum output voltage 480.0 V
Relative symmetric network frequency tolerance 5 %
Base load current at high overload 23.5 A
Base load current at low overload 31.7 A
Power dissipation in W Natural convection 59 W 380 V 4 kHz
Forced convection 366 W 380 V 4 kHz
With safety function Safely Limited Speed (SLS) True
With safety function Safe brake management (SBC/SBT) True
With safety function Safe Operating Stop (SOS) False
With safety function Safe Position (SP) False
With safety function Safe programmable logic False
With safety function Safe Speed Monitor (SSM) False
With safety function Safe Stop 1 (SS1) True
With sft fct Safe Stop 2 (SS2) False
With safety function Safe torque off (STO) True
With safety function Safely Limited Position (SLP) False
With safety function Safe Direction (SDI) False
Protection type Thermal protection motor
Safe torque off motor
Motor phase break motor
Thermal protection drive
Safe torque off drive
Overheating drive
Overcurrent between output phases and earth drive
Overload of output voltage drive
Short-circuit protection drive
Motor phase break drive
Overvoltages on the DC bus drive
Line supply overvoltage drive
Line supply undervoltage drive
Line supply phase loss drive
Overspeed drive
Break on the control circuit drive
Quantity per Set 1
Width 7.7 in (195 mm)
Height 18.9 in (480 mm)
Product Weight 28.7 lb(US) (13 kg)
Electrical connection Control screw terminal 0.5...1.5 mm² AWG 20...AWG 16
Line side screw terminal 10...16 mm² AWG 8...AWG 6
Motor screw terminal 10...16 mm² AWG 8...AWG 6
DC bus screw terminal 10...16 mm² AWG 8...AWG 6
Transmission Rate 10/100 Mbit/s Ethernet IP/Modbus TCP
4.8, 9.6, 19.2, 38.4 kbit/s Modbus serial
Exchange mode Half duplex, full duplex, autonegotiation Ethernet IP/Modbus TCP
Data format 8 bits, configurable odd, even or no parity Modbus serial
Type of polarization No impedance Modbus serial
Number of addresses 1…247 Modbus serial
Supply External supply for digital inputs 24 V DC 19…30 V), <1.25 mA overload and short-circuit protection
Internal supply for reference potentiometer (1 to 10 kOhm) 10.5 V DC +/- 5 %, <10 mA overload and short-circuit protection
Internal supply for digital inputs and STO 24 V DC 21…27 V), <200 mA overload and short-circuit protection
Local signalling Local diagnostic: 3 LED (mono/dual colour)
Embedded communication status: 5 LED (dual colour)
Communication module status: 2 LED (dual colour)
Presence of voltage: 1 LED (red)
Input compatibility DI1...DI8 discrete input level 1 PLC IEC 61131-2
DI7, DI8 pulse input level 1 PLC IEC 65A-68
STOA, STOB discrete input level 1 PLC IEC 61131-2
Discrete input logic Positive logic (source) DI1...DI8), < 5 V, > 11 V
Negative logic (sink) DI1...DI8), > 16 V, < 10 V
Positive logic (source) DI7, DI8), < 0.6 V, > 2.5 V
Positive logic (source) STOA, STOB), < 5 V, > 11 V
Sampling duration 2 ms +/- 0.5 ms DI1...DI8) - discrete input
5 ms +/- 1 ms DI7, DI8) - pulse input
1 ms +/- 1 ms AI1, AI2, AI3) - analog input
5 ms +/- 1 ms AQ1, AQ2) - analog output
Accuracy +/- 0.6 % AI1, AI2, AI3 for a temperature variation 60 °C analog input
+/- 1 % AQ1, AQ2 for a temperature variation 60 °C analog output
Linearity error AI1, AI2, AI3 +/- 0.15 % of maximum value analog input
AQ1, AQ2 +/- 0.2 % analog output
Refresh time Relay output R1, R2, R3)5 ms +/- 0.5 ms)
Isolation Between power and control terminals
