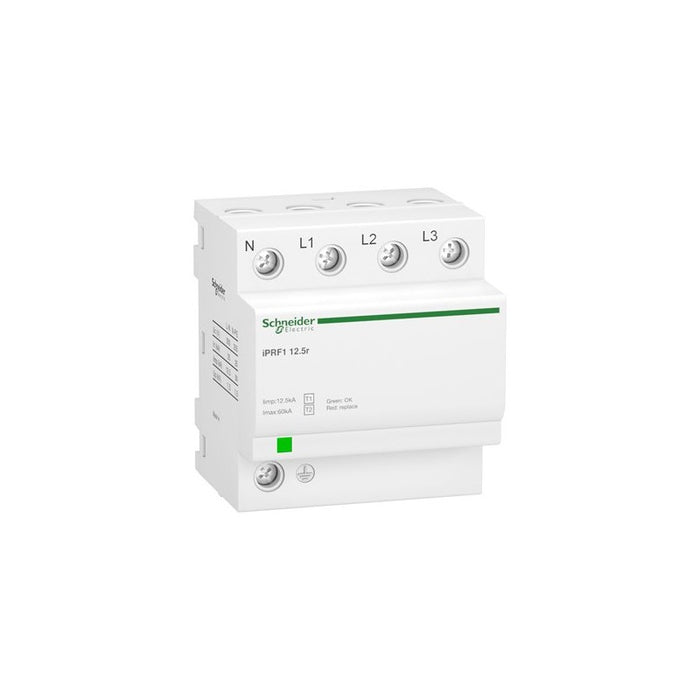

This Acti 9 iPRF1 12.5r Type 1 and 2 fixed surge arrester protects 3P+N installations against direct lightning strikes. It is recommended for electrical installations in the service sector and industrial buildings. It also provides Type 2 protection by finely clipping the lightning wave overvoltage. The Acti9 iPRF1 12.5r must be installed with an upstream disconnection device, such as a fuse or circuit breaker. The associated circuit breaker Isc breaking capacity can go up to 50kA. This Acti9 iPRF1 12.5r Master is suitable for use with TT and TN-S earthing connection systems. The Imax maximum discharge current is 50kA (8/20µs). The In nominal discharge current is 25kA. The Iimp impulse current (10/350µs) in DM differential mode (between phase and neutral) and earth is 12.5kA. The Iimp impulse current (10/350µs) in CM common mode (between neutral) and earth is 50kA. The Uc maximum continuous operating voltage in DM differential mode (between phase and neutral) is 350VAC. The Uc maximum continuous operating voltage in CM common mode (between neutral and earth) is 255VAC. The Up voltage protection level is below or equal to 1.5kV. The Un rated service voltage (network) is 230VAC or 400VAC. The operating frequency is 50Hz or 60Hz. The dimensions are (W) 72mm x (H) 84mm x (D) 71mm. The width in 9mm pitches is 8. The weight is 590g. The operating temperature is -25°C to +60°C. The storage temperature is -40°C to +85°C. The degree of protection is IP20. This product complies with IEC 61643-11:2011 and EN 61643-11: 2012 Type 1 + Type 2 standards.
Main
| Characteristic | Value(s) |
|---|---|
| Range of product | IPRF1 |
| range of product | Acti9 |
| product name | Acti9 iPRF1 |
| Product or component type | Surge arrester |
| Device short name | iPRF1 12.5r |
| Device application | Distribution |
| Standards | EN 61643-11:2012 IEC 61643-11:2011 |
| Product certifications | CE EAC |
| Poles description | 3P + N |
| Remote signalling | With |
| Signal contacts composition | 1 SD (1 C/O) |
| Surge arrester type | Electrical distribution network |
| Earthing system | TT TN-S |
Complementary
| Characteristic | Value(s) |
|---|---|
| Surge arrester class type | Type 1 + 2 |
| Surge arrester technology | MOV + GDT |
| [Ue] rated operational voltage | 230/400 V AC (+/- 10 %) at 50 Hz |
| Nominal discharge current | Differential mode: 25 kA (L/N) Common mode: 25 kA (N/PE) |
| Maximum discharge current | 50 kA |
| [Iimp] impulse current | Common mode: 50 kA N/PE 25 A.s Differential mode: 12.5 kA L/N 6.25 A.s |
| [Uc] maximum continuous operating voltage | Differential mode: 350 V L/N Common mode: 255 V N/PE |
| Maximum [Up] voltage protection level | Common mode <1.5 kV type 1 N/PE Differential mode <1.5 kV type 1 L/N |
| [Ifi] follow current | 0.1 kA common mode N/PE |
| Short-circuit withstand | 25 kA |
| Disconnector device type | Associated circuit breaker NG125N 80 A curve C - Icu 15 kA Associated circuit breaker NG125N 80 A curve C - Icu 25 kA Associated circuit breaker NG125H 80 A curve C - Icu 36 kA Associated circuit breaker NG125L 80 A curve C - Icu 50 kA Associated fuse gG 160 A standard Associated circuit breaker C120N 80 A curve C - Icu 10 kA |
| Signalling circuit voltage | 1.5 A/250 V AC 50/60 Hz |
| Mounting mode | Clip-on (DIN rail) |
| 9 mm pitches | 8 |
| Height | 84 mm |
| Width | 72 mm |
| Depth | 71 mm |
| Product weight | 590 g |
| Colour | White (RAL 9003) |
| Material | PA6 |
| Connections - terminals | Tunnel type terminal10â¦35 mm² rigid Tunnel type terminal10â¦25 mm² flexible |
| Tightening torque | 2.5 N.m |
| Impulse current | 12.5 kA |
| Compatibility code | IPRF1 12.5r |
| Market segment | Small commercial Residential |
