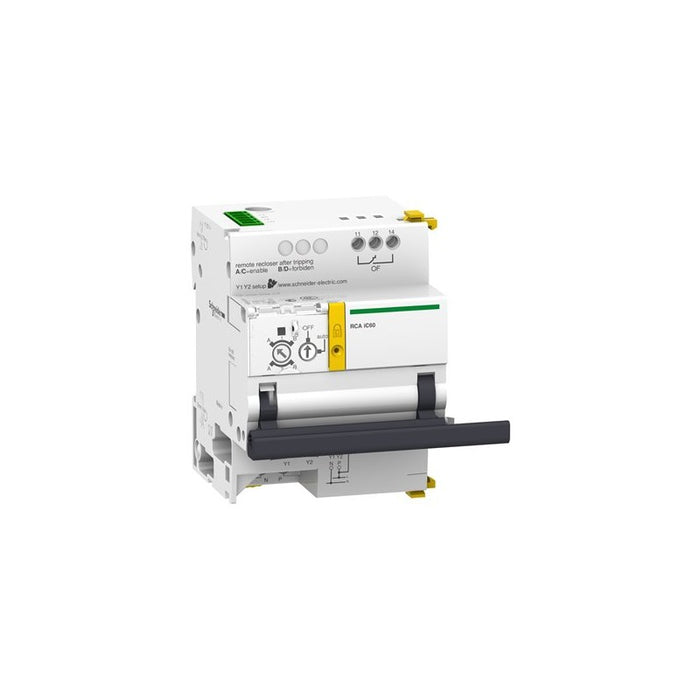

This Acti 9 RCA remote control system is dedicated for iC60 circuit breakers. It allows remote electrical control of circuit breakers with or without Vigi add-on RCD, with or without auxiliary. It allows circuit breaker reseting after tripping, in accordance with safety principles and regulations in force. The width in 9mm pitches is 7. it allows local control by operating handle. This device controls 1P, 1P+N, 2P installations with Ti24 interface. 2 choices of operation after tripping are possible (A) Enabling of remote circuit breaker reset or (B) Inhibition of remote reset. The version with Ti24 interface allows direct interfacing of remote control with programmable logic controller, supervision system, communication device having inputs/outputs in 24VDC (control, OF and SD indications). The circuit is placed in safety configuration by the padlocking device. The version with Ti24 interface allows remote indication by OF potential-free contact, provision of 2 operating modes 1 and 3. The operating temperature is -25°C to + 60°C. The storage temperature is -40°C to + 85°C.
Main
| Characteristic | Value(s) |
|---|---|
| range of product | Acti9 |
| Product or component type | Remote control auxiliary |
| Device short name | RCA iC60 |
| Signal contacts composition | 1 OF volt-free contacts 1 OF Ti24 1 SD Ti24 |
| Signalling circuit voltage | Volt-free contact 24...230 V 0.01â¦1 A AC Ti24 24 V 100 mA DC |
Complementary
| Characteristic | Value(s) |
|---|---|
| Control type | Remote control impulse and maintained 230 V AC 50/60 Hz Remote control maintained Ti24 24 V DC |
| Input current | 5 mA impulse 5 mA maintained 5.5 mA maintained very low voltage |
| Impulse duration | >= 200 ms control circuit |
| Response time | < 500 ms |
| [Us] rated supply voltage | 230 V AC 50/60 Hz |
| Power consumption in W | 1 W |
| [Ui] rated insulation voltage | 400 V |
| [Uimp] rated impulse withstand voltage | 6 kV |
| Value of setting | Auto: remote control authorized Off: remote control inhibited Mode 1: central control Mode 3: central control and local override Position A: reclosing authorized after tripping Position B: reclosing inhibited after tripping |
| Local signalling | Flashing green LED: ready to operate Flashing orange LED: not operational |
| Mounting mode | Fixed |
| Mounting support | DIN rail |
| Comb busbar and distribution block compatibility | NO |
| 9 mm pitches | 7 |
| Height | 93 mm |
| Width | 63 mm |
| Depth | 75.5 mm |
| Product weight | 400 g |
| Colour | White |
| Electrical durability | 10000 cycles |
| Mechanical durability | 10000 cycles |
| Provision for padlocking | Padlockable |
| Wire stripping length | Power supply: 10 mm for bottom connection Input: 10 mm for bottom connection Output: 8 mm for top connection Ti24 interface: 10 mm for terminal connection |
| Tightening torque | Auxiliary output: 0.7 N.m Auxiliary supply: 1 N.m Auxiliary input: 1 N.m |
| Physical interface | Ti24 |
| Range compatibility | Acti 9 Acti9 iC60 Acti 9 Acti9 iC65 Acti 9 iMDU voltage adaptor Modicon PLC |
| Product compatibility | 2P iC60 1P + N iC60 1P iC60 1P iC65 2P iC65 iMDU PLC |
