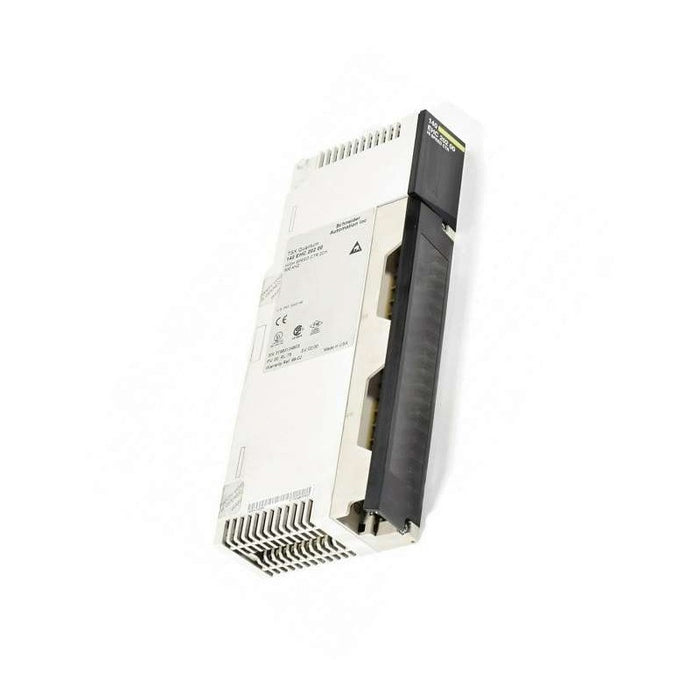

The Schneider Electric 140EHC20200 is a high-speed counter module designed for the Modicon Quantum automation platform. It features two independent counting channels capable of processing frequencies up to 500 kHz, supporting both incremental and quadrature encoder inputs. The module provides precise counting and monitoring for motion control, speed measurement, and position tracking applications in industrial automation environments. It includes four solid-state discrete outputs with short-circuit protection and operates with discrete input voltages below 30 V DC. The module integrates seamlessly into Quantum-compatible racks and is configured via EcoStruxure Control Expert software. LED indicators provide real-time channel status and fault diagnostics. This module is CE-certified and complies with UL 508, CSA C22.2 No. 142, FM Class I Div 2 standards, ensuring reliable performance in demanding manufacturing and process automation systems.
Item Details
- Brand Name: Schneider Electric
- Manufacturer: Schneider Electric
- Item Type Name: High-Speed Counter Module
- Product Family / Series: Modicon Quantum
- Part Number: 140EHC20200
Product Specifications
- number_of_channels: 2
- maximum_frequency: 500 kHz
- counting_modes: Incremental and quadrature
- discrete_input_voltage: <30 V DC
- input_resistance: 10 kΩ
- number_of_outputs: 4
- output_type: Field-effect transistor (FET)
- discrete_output_voltage: 0.4 V DC switching on
- external_power_supply: 19.2 to 30 V DC
- power_consumption: 4 W + (0.4 x total load current)
- bus_current: 650 mA
- external_current_draw: ≤1050 mA at 24 V DC
- channel_to_bus_isolation: 1780 Vrms (60 s)
- output_short_circuit_protection: 2.5 A fuse
- operating_temperature: 0 °C to 60 °C
- storage_temperature: -40 °C to 85 °C
- humidity: up to 95% non-condensing
- altitude: ≤5000 m
- esd_immunity: 4 kV contact, 8 kV air (IEC 801-2)
- rf_immunity: 10 V/m (80–1000 MHz, IEC 801-3)
Additional Details
- Certifications / Approvals: CE, UL 508, CSA C22.2 No. 142, FM Class I Div 2, C-Tick
- Local Signaling: 2 LEDs for channel status indication
- Addressing Requirement: 6 output words, 6 input words
- Rack Mounting: Distributed, local, and remote rack compatible
Measurements
- Weight: 444 g
- Dimensions: 320 x 170 x 50 mm
All PLC Direct products come with a 1-year warranty. The warranty is issued by PLC Direct. Warranty coverage commences at the date of purchase. The warranty is for mechanical defects or failures not caused by human factors including but not limited to (a) incorrect installation, (b) operating the unit in sub-optimal conditions or in scenarios not recommended by the manufacturer, (c) poor unit maintenance, etc. The warranty does not cover programming or software related issues.
If the product is eligible for PLC Direct’s warranty coverage and the customer encounters an issue with the product, we will request the item is shipped to us for diagnosis and examination. Regardless of the cause of product issues, the customer will bear responsibility for the cost of shipping the unit to PLC Direct for evaluation. Where the unit was damaged by human factors, we will offer a repair or replace quote; in cases where damage was caused by human factors, the customer is responsible for the cost of shipping the repaired/replaced unit from PLC Direct to the customer. Where the unit was not damaged by human factors but is covered by PLC Direct’s warranty, we will repair or replace the unit at our cost (or, in rare cases, refund you your purchase); in such cases, PLC Direct will bear the cost of shipping the repaired or replaced product back to the customer. It is up to PLC Direct’s discretion whether to repair, replace, or refund the customer in such cases. Diagnoses can take time to complete based on technician availability and the complexity of diagnosis.
In no event shall PLC Direct be liable for any damages except actual damages up to, but not exceeding, the amount paid to us for the product, including we shall not be liable for any consequential or indirect damages or lost profits whether or not advised of same.
PLC Direct offers free shipping worldwide. Product ship from a various warehouses worldwide based on the customer's and the product's location. The estimated delivery date on the product page is PLC Direct's best estimated assuming a US-based shipping destination.
Regardless of where the product is shipping from, PLC Direct covers all duties for US-based shipping destinations. For non-US-based shipping destinations, customers are responsible for duties as appropriate.
PLC Direct's focus is on balancing price with lead time. Some but not all products can be expedited. If you have questions about delivery ETAs, please contact our team.
