General Automation

275 products

Showing 217 - 240 of 275 products

Showing 217 - 240 of 275 products
View
1SDA066277R1 ABB - KIT P MP XT1 4p
ABB 1SDA066277R1 ABB - KIT P MP XT1 4p
0.00 kr
Sold Out

ABB EcoSolutions

Material Compliance

RoHS Status:
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Conflict Minerals Reporting Template (CMRT):
Toxic Substances Control Act - TSCA:

Environmental

Environmental Information:

Ordering

Order Code US and Canada:
KXT1PMP-4
E-Number (Finland):
3640551
E-Number (Norway):
4381489
EAN:
8015644691981
Minimum Order Quantity:
1 piece
Customs Tariff Number:
85389099

Dimensions

Product Net Weight:
0.3 kg

Container Information

Package Level 1 Units:
box 1 piece
Package Level 1 Width:
200 mm
Package Level 1 Height:
45 mm
Package Level 1 Depth / Length:
200 mm
Package Level 1 Gross Weight:
0.313 kg
Package Level 1 EAN:
8015644691981

Additional Information

Product Main Type:
Accessories for Tmax XT
Product Name:
Accessory
Product Type:
Accessory
Suitable For:
XT1
Suitable for Product Class:
SACE Tmax XT
Version:
P

Technical

Configuration Type:
Loose or configurable
Number of Poles:
4P
Order Multiple:
1 piece
Rated Uninterrupted Current (Iu):
160 A
Standards:
IEC60947-2
UL489
IEC60947-2
UL489

External Classifications and Standards

ETIM 9:
EC002049 - Modification set for power circuit breaker
ETIM 10:
EC002049 - Modification set for power circuit breaker
IDEA Granular Category Code (IGCC):
5219 >> Switch part or accessory
Object Classification Code:
Q
UNSPSC:
39122221
WEEE Category:
5. Small Equipment (No External Dimension More Than 50 cm)
eClass:
V11.1 : 27370402

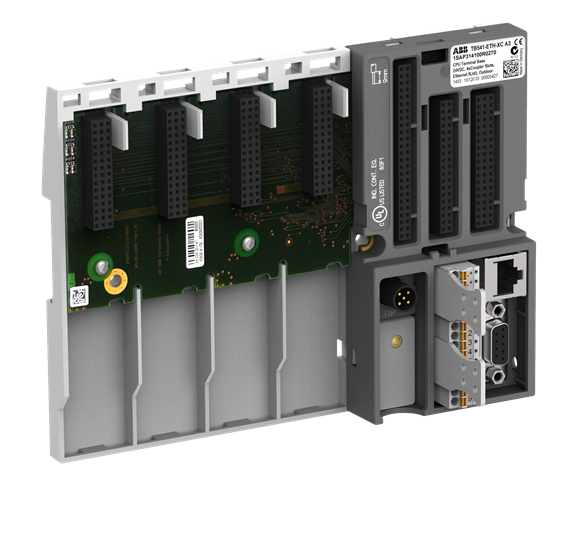

TB521-ETH ABB
ABB TB521-ETH ABB
3,023.00 kr
Only 7 units left

TB521-ETH: AC500 Terminal base. For AC500 V2. 2 slots for communication module. Ethernet interface. 2 serial interfaces RS232/RS485.
1SFA611701R6006 ABB - MJS1-60B
ABB 1SFA611701R6006 ABB - MJS1-60B
0.00 kr
Sold Out

Ordering

Minimum Order Quantity:
1 piece
Customs Tariff Number:
85369001

Dimensions

Product Net Width:
0.04 m
Product Net Height:
0.043 m
Product Net Depth / Length:
0.097 m
Product Net Weight:
0.062 kg

Technical

Ambient Air Temperature:
Operation -25 ... +70 °C
Storage -40 ... +85 °C
Operation -25 ... +70 °C
Storage -40 ... +85 °C
Color:
Black
Actuator Type:
Joystick without latching function
Bezel Material:
Chrome Metal
Illumination:
Non-illuminated
Function:
Maintained
Sub-Function:
2-position
Enclosure Type NEMA:
Type1
Type12
Type13
Type4
Type4X
Type1
Type12
Type13
Type4
Type4X
Mechanical Durability:
0.5 million

Environmental

Degree of Protection:
Front IP66
Front IP67
Front IP69K
Front IP66
Front IP67
Front IP69K

Material Compliance

Conflict Minerals Reporting Template (CMRT):
REACH Declaration:
RoHS Information:
RoHS Status:
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
WEEE Category:
Product Not in WEEE Scope

Certificates and Declarations

Container Information

Package Level 1 Units:
bag 1 piece
Package Level 1 Width:
0.11 m
Package Level 1 Depth / Length:
0.15 m
Package Level 1 Height:
0.048 m
Package Level 1 Gross Weight:
0.065 kg
Package Level 1 EAN:
7320500375693

External Classifications and Standards

Object Classification Code:
S
ETIM 6:
EC000632 - Control switch, Joystick
ETIM 7:
EC000632 - Control switch, Joystick
ETIM 8:
EC000632 - Control switch, Joystick
eClass:
V11.0 : 27371404
UNSPSC:
39122227
IDEA Granular Category Code (IGCC):
5280 >> Joystick switch or control
E-Number (Finland):
2312112
E-Number (Norway):
4372965
E-Number (Sweden):
3705016
1SFA611621R1003 ABB - MLBL-00Y
ABB 1SFA611621R1003 ABB - MLBL-00Y
0.00 kr
Sold Out

Ordering

Minimum Order Quantity:
10 piece
Customs Tariff Number:
85369001

Dimensions

Product Net Width:
0.01 m
Product Net Height:
0.044 m
Product Net Depth / Length:
0.042 m
Product Net Weight:
0.01 kg

Technical

Ambient Air Temperature:
Operation -25 ... +70 °C
Storage -40 ... +85 °C
Operation -25 ... +70 °C
Storage -40 ... +85 °C
Color:
Yellow
Illumination:
Illuminated
Lamp Type:
12V DC, integrated LED
Mounting Type:
Front mounting
Rated Operational Voltage:
12 V DC
Connecting Capacity:
Flexible with Ferrule 1 x 0.75...2.5 mm²
Flexible with Ferrule 2 x 0.75...2.5 mm²
Flexible with Insulated Ferrule 1 x 0.75...2.5 mm²
Flexible with Insulated Ferrule 2 x 0.75...2.5 mm²
Flexible 1 x 0.75 ... 2.5 mm²
Flexible 2 x 0.75 ... 2.5 mm²
Solid 1 x 0.75...2.5 mm²
Solid 2 x 0.75...2.5 mm²
Flexible with Ferrule 1 x 0.75...2.5 mm²
Flexible with Ferrule 2 x 0.75...2.5 mm²
Flexible with Insulated Ferrule 1 x 0.75...2.5 mm²
Flexible with Insulated Ferrule 2 x 0.75...2.5 mm²
Flexible 1 x 0.75 ... 2.5 mm²
Flexible 2 x 0.75 ... 2.5 mm²
Solid 1 x 0.75...2.5 mm²
Solid 2 x 0.75...2.5 mm²
Connection Type:
Screw Clamp
Terminal Type:
Screw Terminals
Tightening Torque:
0.9 N·m
Wire Stripping Length:
8 mm
Suitable For:
MCBH-00
MCBH5-00
MP1
MP2
MP3
MP4
MPMT3
MPMP3
M2SS1
M2SS2
M2SS3
M2SS4
M2SS5
M2SS6
M3SS1
M3SS2
M3SS3
M3SS4
M3SS5
M3SS6
M3SS7
M3SS8
MPM1
MCBH-00
MCBH5-00
MP1
MP2
MP3
MP4
MPMT3
MPMP3
M2SS1
M2SS2
Suitable for Product Class:
Pilot Devices

Technical UL/CSA

Connecting Capacity UL/CSA:
1x 18...14 AWG
2x 18...14 AWG
1x 18...14 AWG
2x 18...14 AWG

Environmental

Degree of Protection:
Terminals IP20

Material Compliance

Conflict Minerals Reporting Template (CMRT):
REACH Declaration:
RoHS Information:
RoHS Status:
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
WEEE B2C / B2B:
Business To Business
WEEE Category:
5. Small Equipment (No External Dimension More Than 50 cm)

Certificates and Declarations

CB Certificate:
Declaration of Conformity - UKCA:

Container Information

Package Level 1 Units:
bag 10 piece
Package Level 1 Width:
0.135 m
Package Level 1 Depth / Length:
0.155 m
Package Level 1 Height:
0.025 m
Package Level 1 Gross Weight:
0.11 kg
Package Level 1 EAN:
7320500373118

External Classifications and Standards

Object Classification Code:
E
ETIM 6:
EC000204 - Lamp holder block for control circuit devices
ETIM 7:
EC000204 - Lamp holder block for control circuit devices
ETIM 8:
EC000204 - Lamp holder block for control circuit devices
eClass:
V11.0 : 27371209
UNSPSC:
39122221
IDEA Granular Category Code (IGCC):
5219 >> Switch part or accessory
E-Number (Finland):
2315742
E-Number (Sweden):
3705607
TA562-RS ABB - 1TNE968901R4300
ABB TA562-RS ABB - 1TNE968901R4300
0.00 kr
Sold Out

AC500, RS485 Serial Adapter Option board,Screw terminal
1SDA066321R1 ABB - SOR-C XT1..XT4 F/P 12 Vdc
ABB 1SDA066321R1 ABB - SOR-C XT1..XT4 F/P 12 Vdc
0.00 kr
Sold Out

Material Compliance

RoHS Status:
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Conflict Minerals Reporting Template (CMRT):
Toxic Substances Control Act - TSCA:

Environmental

Environmental Information:

Ordering

Order Code US and Canada:
KXTASORCFPA
E-Number (Norway):
4384925
EAN:
8015644692179
Minimum Order Quantity:
1 piece
Customs Tariff Number:
85389099

Dimensions

Product Net Weight:
0.114 kg

Container Information

Package Level 1 Units:
box 1 piece
Package Level 1 Width:
110 mm
Package Level 1 Height:
60 mm
Package Level 1 Depth / Length:
140 mm
Package Level 1 Gross Weight:
0.12 kg
Package Level 1 EAN:
8015644692179

Additional Information

Product Main Type:
Accessories for Tmax XT
Product Name:
Accessory
Product Type:
Accessory
Suitable For:
XT1, XT2, XT3, XT4
Suitable for Product Class:
SACE Tmax XT

Technical

Configuration Type:
Loose or configurable
Current Type:
DC
Order Multiple:
1 piece
Rated Voltage (Ur):
12 V DC
Standards:
IEC60947-2
UL489
IEC60947-2
UL489

External Classifications and Standards

ETIM 9:
EC002483 - Switch spool for power circuit breaker
ETIM 10:
EC002483 - Switch spool for power circuit breaker
IDEA Granular Category Code (IGCC):
4879 >> Shunt release (for power circuit breaker)
Object Classification Code:
Q
UNSPSC:
39121601
WEEE Category:
5. Small Equipment (No External Dimension More Than 50 cm)
eClass:
V11.1 : 27370421
1SFA616070R4011 ABB - KL70-401R
ABB 1SFA616070R4011 ABB - KL70-401R
0.00 kr
Sold Out

KL70-401R Light Element
1SDA066322R1 ABB SOR-C XT1..XT4 F/P 24-30 Vac/dc
ABB 1SDA066322R1 ABB SOR-C XT1..XT4 F/P 24-30 Vac/dc
0.00 kr
Sold Out

Material Compliance

RoHS Status:
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Conflict Minerals Reporting Template (CMRT):
Toxic Substances Control Act - TSCA:

Environmental

Environmental Information:

Ordering

Order Code US and Canada:
KXTASORCFPB
E-Number (Finland):
3638713
E-Number (Norway):
4384926
EAN:
8015644002305
Minimum Order Quantity:
1 piece
Customs Tariff Number:
85389099

Dimensions

Product Net Weight:
0.115 kg

Container Information

Package Level 1 Units:
box 1 piece
Package Level 1 Width:
110 mm
Package Level 1 Height:
60 mm
Package Level 1 Depth / Length:
140 mm
Package Level 1 Gross Weight:
0.124 kg
Package Level 1 EAN:
8015644002305

Additional Information

Product Main Type:
Accessories for Tmax XT
Product Name:
Accessory
Product Type:
Accessory
Suitable For:
XT1, XT2, XT3, XT4
Suitable for Product Class:
SACE Tmax XT

Technical

Configuration Type:
Loose or configurable
Current Type:
AC/DC
Order Multiple:
1 piece
Rated Voltage (Ur):
24 ... 30 V AC
24 ... 30 V DC
24 ... 30 V AC
24 ... 30 V DC
Standards:
IEC60947-2
UL489
IEC60947-2
UL489

External Classifications and Standards

ETIM 9:
EC002483 - Switch spool for power circuit breaker
ETIM 10:
EC002483 - Switch spool for power circuit breaker
IDEA Granular Category Code (IGCC):
4879 >> Shunt release (for power circuit breaker)
Object Classification Code:
Q
UNSPSC:
39121601
WEEE Category:
5. Small Equipment (No External Dimension More Than 50 cm)
eClass:
V11.1 : 27370421

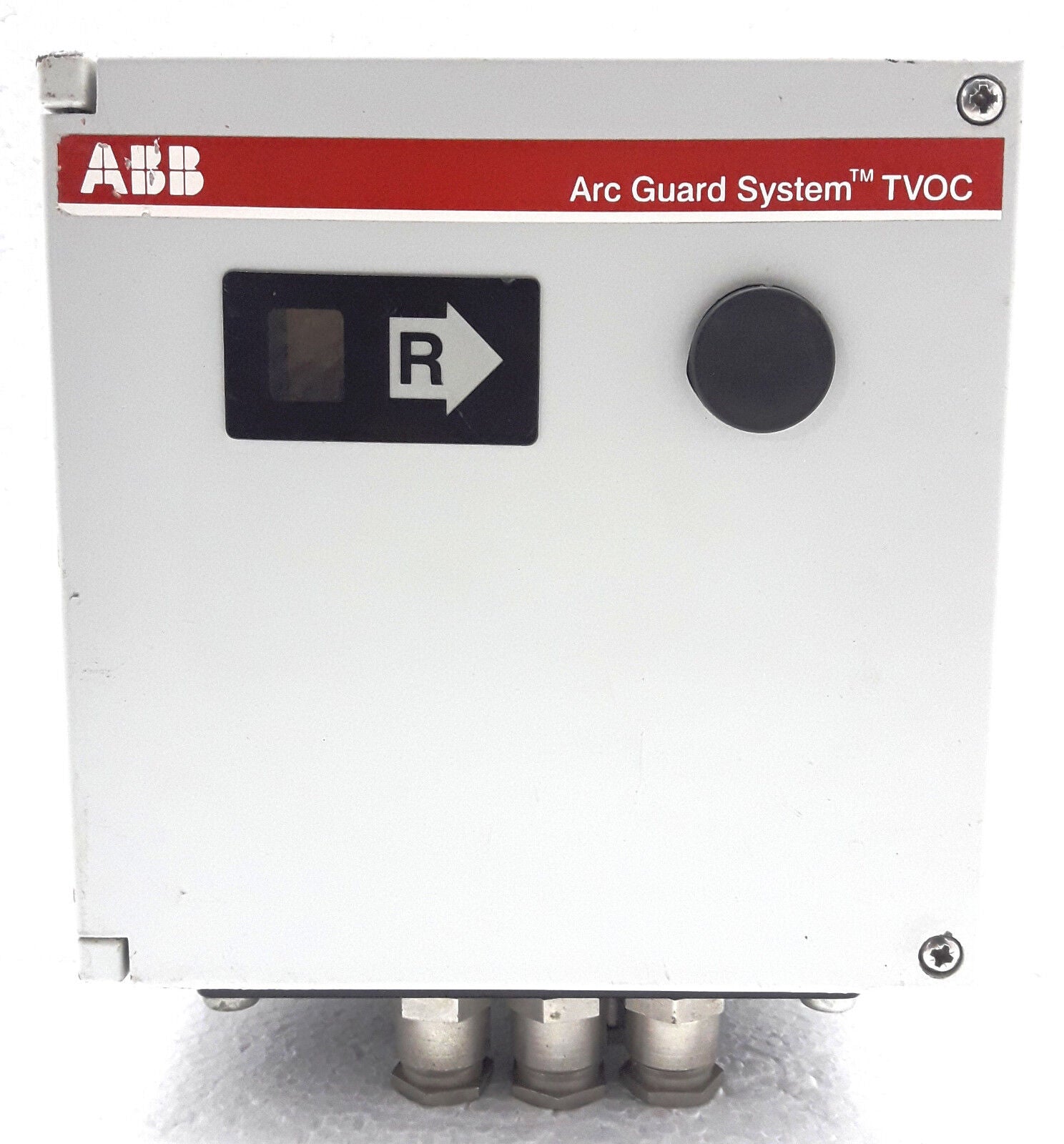

1SFA663001R1001 ABB - TVOC-AM240
ABB 1SFA663001R1001 ABB - TVOC-AM240
24,951.00 kr
Only 3 units left

TVOC ARC GUARD SYSTEM 1SFA663001R1001
1SDA066324R1 ABB SOR-C XT1..XT4 F/P 110-127Vac-110-125Vdc
ABB 1SDA066324R1 ABB SOR-C XT1..XT4 F/P 110-127Vac-110-125Vdc
3,176.00 kr
Only 1 unit left

Material Compliance

RoHS Status:
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Conflict Minerals Reporting Template (CMRT):
Toxic Substances Control Act - TSCA:

Environmental

Environmental Information:

Ordering

Order Code US and Canada:
KXTASORCFPD
E-Number (Finland):
3638709
E-Number (Norway):
4384928
E-Number (Sweden):
3182060
EAN:
8015644002329
Minimum Order Quantity:
1 piece
Customs Tariff Number:
85389099

Dimensions

Product Net Weight:
0.115 kg

Container Information

Package Level 1 Units:
box 1 piece
Package Level 1 Width:
110 mm
Package Level 1 Height:
60 mm
Package Level 1 Depth / Length:
140 mm
Package Level 1 Gross Weight:
0.121 kg
Package Level 1 EAN:
8015644002329

Additional Information

Product Main Type:
Accessories for Tmax XT
Product Name:
Accessory
Product Type:
Accessory
Suitable For:
XT1, XT2, XT3, XT4
Suitable for Product Class:
SACE Tmax XT

Technical

Configuration Type:
Loose or configurable
Current Type:
AC/DC
Order Multiple:
1 piece
Rated Voltage (Ur):
110 ... 127 V AC
110 ... 125 V DC
110 ... 127 V AC
110 ... 125 V DC
Standards:
IEC60947-2
UL489
IEC60947-2
UL489

External Classifications and Standards

ETIM 9:
EC002483 - Switch spool for power circuit breaker
ETIM 10:
EC002483 - Switch spool for power circuit breaker
IDEA Granular Category Code (IGCC):
4879 >> Shunt release (for power circuit breaker)
Object Classification Code:
Q
UNSPSC:
39121601
WEEE Category:
5. Small Equipment (No External Dimension More Than 50 cm)
eClass:
V11.1 : 27370421
SDCS-COM-81 ABB
ABB SDCS-COM-81 ABB
8,253.00 kr
Only 4 units left

COMMUNICATION CARD, 10MBD, PLUG-IN MODULE, FAST OPTICAL DDCS COMMUNICATION MODULE, (3ADT220134R0001)
1SBL347201R1100 ABB - AF40-40-00-11
ABB 1SBL347201R1100 ABB - AF40-40-00-11
0.00 kr
Sold Out

Ordering

Minimum Order Quantity:
1 piece
Customs Tariff Number:
85364900

Dimensions

Product Net Width:
70 mm
Product Net Depth / Length:
113.5 mm
Product Net Height:
125.5 mm
Product Net Weight:
1.21 kg

Technical

Number of Main Contacts NO:
4
Number of Main Contacts NC:
0
Number of Auxiliary Contacts NO:
0
Number of Auxiliary Contacts NC:
0
Number of Poles:
4P
Standards:
IEC/EN 60947-1, IEC/EN 60947-4-1, UL 60335-2-40 LZGH2 A2L, UL 60947-1, UL 60947-4-1, CSA C22.2 No. 60335-2-40 LZGH2 A2L, CSA C22.2 No. 60947-1:22, CSA C22.2 No. 60947-4-1:22
Rated Operational Voltage:
Main Circuit 690 V
Rated Frequency (f):
Control Circuit 50 / 60 Hz
Main Circuit 50 / 60 Hz
Control Circuit 50 / 60 Hz
Main Circuit 50 / 60 Hz
Conventional Free-air Thermal Current (Ith):
acc. to IEC 60947-4-1, Open Contactors Θ = 40 °C 105 A
Rated Operational Current AC-1 (Ie):
(690 V) 40 °C 70 A
(690 V) 60 °C 60 A
(690 V) 70 °C 50 A
(690 V) 40 °C 70 A
(690 V) 60 °C 60 A
(690 V) 70 °C 50 A
Rated Operational Current AC-3 (Ie):
(415 V) 60 °C 40 A
(440 V) 60 °C 40 A
(500 V) 60 °C 35 A
(690 V) 60 °C 25 A
(380 / 400 V) 60 °C 40 A
(220 / 230 / 240 V) 60 °C 40 A
(415 V) 60 °C 40 A
(440 V) 60 °C 40 A
(500 V) 60 °C 35 A
(690 V) 60 °C 25 A
(380 / 400 V) 60 °C 40 A
(220 / 230 / 240 V) 60 °C 40 A
Rated Operational Power AC-3 (Pe):
(415 V) 22 kW
(440 V) 22 kW
(500 V) 22 kW
(690 V) 22 kW
(380 / 400 V) 18.5 kW
(220 / 230 / 240 V) 11 kW
(415 V) 22 kW
(440 V) 22 kW
(500 V) 22 kW
(690 V) 22 kW
(380 / 400 V) 18.5 kW
(220 / 230 / 240 V) 11 kW
Rated Short-time Withstand Current Low Voltage (Icw):
at 40 °C Ambient Temp, in Free Air, from a Cold State 10 s 600 A
at 40 °C Ambient Temp, in Free Air, from a Cold State 15 min 110 A
at 40 °C Ambient Temp, in Free Air, from a Cold State 1 min 250 A
at 40 °C Ambient Temp, in Free Air, from a Cold State 1 s 1000 A
at 40 °C Ambient Temp, in Free Air, from a Cold State 30 s 350 A
at 40 °C Ambient Temp, in Free Air, from a Cold State 10 s 600 A
at 40 °C Ambient Temp, in Free Air, from a Cold State 15 min 110 A
at 40 °C Ambient Temp, in Free Air, from a Cold State 1 min 250 A
at 40 °C Ambient Temp, in Free Air, from a Cold State 1 s 1000 A
at 40 °C Ambient Temp, in Free Air, from a Cold State 30 s 350 A
Maximum Breaking Capacity:
cos phi=0.45 (cos phi=0.35 for Ie > 100 A) at 440 V 950 A
cos phi=0.45 (cos phi=0.35 for Ie > 100 A) at 690 V 600 A
cos phi=0.45 (cos phi=0.35 for Ie > 100 A) at 440 V 950 A
cos phi=0.45 (cos phi=0.35 for Ie > 100 A) at 690 V 600 A
Rated Insulation Voltage (Ui):
acc. to IEC 60947-4-1 690 V
acc. to UL/CSA 600 V
acc. to IEC 60947-4-1 690 V
acc. to UL/CSA 600 V
Rated Impulse Withstand Voltage (Uimp):
6 kV
Maximum Electrical Switching Frequency:
(AC-1) 600 cycles per hour
Maximum Mechanical Switching Frequency:
3600 cycles per hour
Rated Control Circuit Voltage (Uc):
50 Hz 24 ... 60 V
60 Hz 24 ... 60 V
DC Operation 20 ... 60 V
50 Hz 24 ... 60 V
60 Hz 24 ... 60 V
DC Operation 20 ... 60 V
Coil Consumption:
Average Holding Value 50 / 60 Hz 4 V·A
Average Holding Value 50 Hz 4 V·A
Average Holding Value 60 Hz 4 V·A
Average Holding Value DC 2 W
Average Holding Value, from Warm State 2 W
Average Holding Value 50 / 60 Hz 4 V·A
Average Holding Value 50 Hz 4 V·A
Average Holding Value 60 Hz 4 V·A
Average Holding Value DC 2 W
Average Holding Value, from Warm State 2 W
Power Loss:
at Rated Operating Conditions AC-1 per Pole 3 W
at Rated Operating Conditions AC-3 per Pole 1 W
at Rated Operating Conditions AC-1 per Pole 3 W
at Rated Operating Conditions AC-3 per Pole 1 W
Mounting on DIN Rail:
TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715
Mounting by Screws (not supplied) :
2 x M4 or 2 x M6 Screws Placed Diagonally
Connecting Capacity Main Circuit:
Flexible with Ferrule 1/2x 4 ... 35 mm²
Flexible with Insulated Ferrule 1/2x 4 ... 35 mm²
Rigid Stranded 1/2x 6 ... 35 mm²
Flexible with Ferrule 1/2x 4 ... 35 mm²
Flexible with Insulated Ferrule 1/2x 4 ... 35 mm²
Rigid Stranded 1/2x 6 ... 35 mm²
Connecting Capacity Control Circuit:
Flexible with Ferrule 1/2x 0.75 ... 2.5 mm²
Flexible with Insulated Ferrule 1x 0.75 ... 2.5 mm²
Flexible with Insulated Ferrule 2x 0.75 ... 1.5 mm²
Rigid Solid 1/2x 1 ... 2.5 mm²
Rigid Stranded 1/2x 1 ... 2.5 mm²
Flexible with Ferrule 1/2x 0.75 ... 2.5 mm²
Flexible with Insulated Ferrule 1x 0.75 ... 2.5 mm²
Flexible with Insulated Ferrule 2x 0.75 ... 1.5 mm²
Rigid Solid 1/2x 1 ... 2.5 mm²
Rigid Stranded 1/2x 1 ... 2.5 mm²
Wire Stripping Length:
Control Circuit 10 mm
Main Circuit 16 mm
Control Circuit 10 mm
Main Circuit 16 mm
Degree of Protection:
acc. to IEC 60529, IEC 60947-1, EN 60529 Coil Terminals IP20
acc. to IEC 60529, IEC 60947-1, EN 60529 Main Terminals IP10
acc. to IEC 60529, IEC 60947-1, EN 60529 Coil Terminals IP20
acc. to IEC 60529, IEC 60947-1, EN 60529 Main Terminals IP10
Recommended Screw Driver:
Pozidriv PZ
Tightening Torque:
Control Circuit 1.2 N·m
Main Circuit 4 N·m
Control Circuit 1.2 N·m
Main Circuit 4 N·m
Terminal Type:
Screw Terminals
Product Name:
Block Contactor

Technical UL/CSA

Maximum Operating Voltage UL/CSA:
Main Circuit 600 V
General Use Rating UL/CSA:
(600 V AC) 60 A
Connecting Capacity Main Circuit UL/CSA:
Rigid Stranded 1/2x 10-2 AWG
Connecting Capacity Control Circuit UL/CSA:
Rigid Solid 1/2x 18-14 AWG
Rigid Stranded 1/2x 18-14 AWG
Rigid Solid 1/2x 18-14 AWG
Rigid Stranded 1/2x 18-14 AWG
Tightening Torque UL/CSA:
Control Circuit 11 in·lb
Main Circuit 35 in·lb
Control Circuit 11 in·lb
Main Circuit 35 in·lb
Full Load Amps Motor Use:
(120 V AC) Single Phase 3 A
(200 ... 208 V AC) Three Phase 10 A
(220 ... 240 V AC) Three Phase 15 A
(240 V AC) Single Phase 7-1/2 A
(440 ... 480 V AC) Three Phase 30 A
(550 ... 600 V AC) Three Phase 40 A
(120 V AC) Single Phase 3 A
(200 ... 208 V AC) Three Phase 10 A
(220 ... 240 V AC) Three Phase 15 A
(240 V AC) Single Phase 7-1/2 A
(440 ... 480 V AC) Three Phase 30 A
(550 ... 600 V AC) Three Phase 40 A

Environmental

Ambient Air Temperature:
Close to Contactor for Storage -60 ... +80 °C
Near Contactor for Operation in Free Air -40 ... 70 °C
Close to Contactor for Storage -60 ... +80 °C
Near Contactor for Operation in Free Air -40 ... 70 °C
Climatic Withstand:
Category B according to IEC 60947-1 Annex Q
Maximum Operating Altitude Permissible:
Without Derating 3000 m
Resistance to Vibrations:
3g Closed Position & 2g Open Position 5 ... 300 Hz
Pollution Degree:
3

Material Compliance

Conflict Minerals Reporting Template (CMRT):
RoHS Status:
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
WEEE B2C / B2B:
Business To Business
WEEE Category:
5. Small Equipment (No External Dimension More Than 50 cm)

ABB EcoSolutions

ABB EcoSolutions:
Yes
End Of Life Disassembling Instructions:
Sustainable Material Content in Packaging (wt. %):
FSC Recycled Paper - 94.6 %
Sustainable Material Content in Product (wt. %):
Recycled Metal - 28.2 %

Certificates and Declarations

A2L Certificate – UL:
BV Certificate:
UL Listing Card:

Container Information

Package Level 1 Units:
box 1 piece
Package Level 1 Width:
150 mm
Package Level 1 Depth / Length:
150 mm
Package Level 1 Height:
103 mm
Package Level 1 Gross Weight:
1.32 kg
Package Level 1 EAN:
3471523133518
Package Level 2 Units:
box 8 piece
Package Level 2 Width:
250 mm
Package Level 2 Depth / Length:
300 mm
Package Level 2 Height:
300 mm
Package Level 2 Gross Weight:
10.56 kg

External Classifications and Standards

Object Classification Code:
Q
ETIM 7:
EC000066 - Power contactor, AC switching
ETIM 8:
EC000066 - Power contactor, AC switching
ETIM 9:
EC000066 - Power contactor, AC switching
eClass:
V11.0 : 27371003
UNSPSC:
39121529
IDEA Granular Category Code (IGCC):
4758 >> Iec Contactors
E-Number (Finland):
3707255
E-Number (Sweden):
3210296
TB511-ETH ABB - Terminal Base 1SAP111100R0270
ABB TB511-ETH ABB - Terminal Base 1SAP111100R0270
2,868.00 kr
Only 8 units left

AC500,Terminal Base,1slot ETHERNET,24VDC,screw terminals
ACS-BRK-CL ABB - Brake Choppers 3AFE64297091
ABB ACS-BRK-CL ABB - Brake Choppers 3AFE64297091
0.00 kr
Sold Out

ACS-BRK-CL Brake Choppers
1SBL351001R8011 ABB - A50-30-11 220-230V 50Hz / 230-240V 60Hz
ABB 1SBL351001R8011 ABB - A50-30-11 220-230V 50Hz / 230-240V 60Hz
0.00 kr
Sold Out

A50-30-11 220-230V 50Hz / 230-240V 60Hz Contactor. A50 contactors are mainly used for controlling 3-phase motors and generally for controlling power circuits up to 690 V AC / 1000 V AC or 220 V DC. The contactors can also be used for many other applications such as isolation, capacitor switching, lighting.
1SFA894012R7000 ABB - PST210-600-70
ABB 1SFA894012R7000 ABB - PST210-600-70
32,063.00 kr
Only 4 units left

Ordering

Minimum Order Quantity:
1 piece
Customs Tariff Number:
8503009999

Popular Downloads

Data Sheet, Technical Information:

Dimensions

Product Net Width:
360 mm
Product Net Height:
420 mm
Product Net Depth / Length:
270 mm
Product Net Weight:
21.5 kg

Technical

Rated Operational Voltage:
Main Circuit 208 ... 600 V AC
Rated Control Supply Voltage (Us):
100 ... 250 V AC
Rated Control Circuit Voltage (Uc):
DC Operation 24 V
Rated Frequency (f):
50/60 Hz
Main Circuit 50 / 60 Hz
50/60 Hz
Main Circuit 50 / 60 Hz
Rated Operational Power - In-Line Connection (Pe):
(400 V) 110 kW
(500 V) 132 kW
(400 V) 110 kW
(500 V) 132 kW
Rated Operational Current - In-Line Connection (Ie):
210 A
Rated Operational Power - Inside Delta Connection:
at 400 V 184 kW
at 500 V 250 kW
at 400 V 184 kW
at 500 V 250 kW
Rated Operational Current - Inside Delta Connection:
360 A
Service Factor Percentage:
115 %
Overload Protection:
Build-in electronic overload protection
Integrated Electronic Overload:
Yes
Starting Capacity at Maximum Rated Current Ie:
3xIe for 15s
Ramp Time:
0 ... 120 second [unit of time]
1 ... 120 second [unit of time]
0 ... 120 second [unit of time]
1 ... 120 second [unit of time]
Initial Voltage During Start:
30 ... 70 %
Step Down Voltage Special Ramp:
100 ... 30 %
Current Limit Function:
1.5 ... 7xIe
Switch for Inside Delta Connection:
Yes
Run Signal Relay:
Yes
By-pass Signal Relay:
Yes
Fault Signal Relay:
Yes
Overload Signal Relay:
Yes
Analog Outputs:
0…10 volts
0…20 mA
4…20 mA
0…10 volts
0…20 mA
4…20 mA
Signal Indication Ready to Start/Standby ON (LED):
Green
Signal Indication Protection (LED):
Yellow
Signal Indication Fault (LED):
Red
Number of Starts Per Hour at 3.5*Ie for 7 sec. 50% ON Time 50% OFF Time:
30
Communication:
FiledBusPlug(Standard)
Degree of Protection:
acc. to IEC 60529, IEC 60947-1, EN 60529 Main Terminals IP00
Terminal Type:
Main Circuit: Bars
Connecting Capacity Main Circuit:
Hole Diameter 10.2 mm
Width and Thickness 20x5 mm
Hole Diameter 10.2 mm
Width and Thickness 20x5 mm
Connecting Capacity Control Circuit:
Rigid 1 x 2.5 mm²
Rigid 2 x 1.5 mm²
Rigid 1 x 2.5 mm²
Rigid 2 x 1.5 mm²
Connecting Capacity Supply Circuit:
Rigid 1 x 2.5
Tightening Torque:
Control Circuit 0.5 N·m
Main Circuit 28 N·m
Supply Circuit 0.5 N·m
Control Circuit 0.5 N·m
Main Circuit 28 N·m
Supply Circuit 0.5 N·m
Product Main Type:
PST210

Environmental

Ambient Air Temperature:
Operation 0 ... +50 °C
Storage -25 ... +70 °C
Operation 0 ... +50 °C
Storage -25 ... +70 °C

Material Compliance

Conflict Minerals Reporting Template (CMRT):
RoHS Information:
WEEE B2C / B2B:
Business To Business
WEEE Category:
5. Small Equipment (No External Dimension More Than 50 cm)

Certificates and Declarations

Declaration of Conformity - CE:

Container Information

Package Level 1 Width:
400 mm
Package Level 1 Depth / Length:
475 mm
Package Level 1 Height:
310 mm
Package Level 1 Gross Weight:
23.1 kg
Package Level 1 EAN:
7320500255605
Package Level 1 Units:
1 piece

External Classifications and Standards

Object Classification Code:
Q
ETIM 7:
EC000640 - Soft starter
ETIM 8:
EC000640 - Soft starter
ETIM 9:
EC000640 - Soft starter
eClass:
V11.0 : 27370907
UNSPSC:
39121521
1SFA892004R1002 ABB - PSS44/76-500L
ABB 1SFA892004R1002 ABB - PSS44/76-500L
0.00 kr
Sold Out

Additional Information

Ambient Air Temperature:
Operation -25 ... +60 °C
Storage -40 ... +70 °C
Operation -25 ... +60 °C
Storage -40 ... +70 °C
Ambient Temperature:
-25 ... 60 °C
By-pass Signal Relay:
Yes
CN8:
8503 00 99
Communication:
No
Conflict Minerals Reporting Template (CMRT):
Connecting Capacity Control Circuit:
Rigid 2.5 mm²
Connecting Capacity Main Circuit:
Rigid 1/2 x 2.5 ... 16 mm²
Connecting Capacity Supply Circuit:
Rigid 2.5
Conventional Free-air Thermal Current (Ith):
Signal Relays 5 A
Current Limit Function:
1.5 ... 4 xIe if current transformer is connected
Current Range:
18 ... 44 A
Customs Tariff Number:
8503009999
Data Sheet, Technical Information:
Declaration of Conformity - CE:
Degree of Protection:
acc. to IEC 60529, IEC 60947-1, EN 60529 Main Terminals IP20
EAN:
7320500206607
EPLAN Product Categorization:
Main Product WITH Accessories
ETIM 4:
EC002572 - Electronic motor control and protection device
ETIM 5:
EC002572 - Electronic motor control and protection device
ETIM 7:
EC000640 - Soft starter
ETIM 8:
EC000640 - Soft starter
ETIM 9:
EC000640 - Soft starter
EU Data Act Applicability and Compliance:
2025 Applicable - Pending Assessment
Environmental Information:
Fault Signal Relay:
Yes, NO contact
Initial Voltage During Start:
30 ... 70 %
Integrated Electronic Overload:
No
Invoice Description:
SOFTSTARTER#PSS44/76-500L
Minimum Order Quantity:
1 piece
Number of Starts Per Hour at 3.5*Ie for 7 sec. 50% ON Time 50% OFF Time:
30
Object Classification Code:
Q
Order Code US and Canada:
PSS44/76-500L
Order Multiple:
1
Overload Protection:
Recommended TA75DU 18 ... 44
Overload Signal Relay:
No
Package Level 1 Depth / Length:
320 mm
Package Level 1 EAN:
7320500206607
Package Level 1 Gross Weight:
3 kg
Package Level 1 Height:
235 mm
Package Level 1 Units:
1 piece
Package Level 1 Width:
175 mm
Power Consumption (@Pcons):
9 W
Power Loss:
142 W
Product Main Type:
PSS44/76
Product Name:
Softstarter
Product Net Depth / Length:
162 mm
Product Net Height:
200 mm
Product Net Weight:
3.2 kg
Product Net Width:
120 mm
Ramp Time:
0 ... 30 second [unit of time]
1 ... 30 second [unit of time]
0 ... 30 second [unit of time]
1 ... 30 second [unit of time]
Rated Control Circuit Voltage (Uc):
DC Operation 24 V
Rated Control Supply Voltage (Us):
220 ... 240 V AC
Rated Frequency (f):
50/60 Hz
Main Circuit 50 / 60 Hz
50/60 Hz
Main Circuit 50 / 60 Hz
Rated Operational Current - In-Line Connection (Ie):
44 A
Rated Operational Current - Inside Delta Connection:
76 A
Rated Operational Current AC-15 (Ie):
(250 V) 1.5 A
Rated Operational Power - In-Line Connection (Pe):
(230 V) 11 kW
(400 V) 22 kW
(500 V) 25 kW
(230 V) 11 kW
(400 V) 22 kW
(500 V) 25 kW
Rated Operational Power - Inside Delta Connection:
at 230 V 22 kW
at 400 V 37 kW
at 500 V 45 kW
at 230 V 22 kW
at 400 V 37 kW
at 500 V 45 kW
Rated Operational Voltage:
Main Circuit 208 ... 500 V AC
RoHS Date:
0605 2
RoHS Information:
RoHS Status:
Following EU Directive 2002/95/EC August 18, 2005 and amendment
Run Signal Relay:
No
Selling Unit of Measure:
piece
Service Factor Percentage:
115 %
Short Description:
SOFTSTARTER#PSS44/76-500L
Signal Indication Completed Start Ramp (LED):
Green
Signal Indication Fault (LED):
Red
Signal Indication Ready to Start/Standby ON (LED):
Green
Signal Indication Running R (LED):
Green
Starting Capacity at Maximum Rated Current Ie:
4xIe for 10s
Step Down Voltage Special Ramp:
No %
Switch for Inside Delta Connection:
Yes
Switch for Kick Start (Kick):
No
Terminal Type:
Screw Terminals
Tightening Torque:
Control Circuit 0.5 N·m
Main Circuit 2.6 N·m
Supply Circuit 0.5 N·m
Control Circuit 0.5 N·m
Main Circuit 2.6 N·m
Supply Circuit 0.5 N·m
Type of Start:
normal
UNSPSC:
39121521
WEEE B2C / B2B:
Business To Business
WEEE Category:
5. Small Equipment (No External Dimension More Than 50 cm)
eClass:
V11.0 : 27370907
1SBL347201R1300 ABB - AF40-40-00-13
ABB 1SBL347201R1300 ABB - AF40-40-00-13
0.00 kr
Sold Out

Ordering

Minimum Order Quantity:
1 piece
Customs Tariff Number:
85364900

Dimensions

Product Net Width:
70 mm
Product Net Depth / Length:
113.5 mm
Product Net Height:
125.5 mm
Product Net Weight:
1.27 kg

Technical

Number of Main Contacts NO:
4
Number of Main Contacts NC:
0
Number of Auxiliary Contacts NO:
0
Number of Auxiliary Contacts NC:
0
Number of Poles:
4P
Standards:
IEC/EN 60947-1, IEC/EN 60947-4-1, UL 60335-2-40 LZGH2 A2L, UL 60947-1, UL 60947-4-1, CSA C22.2 No. 60335-2-40 LZGH2 A2L, CSA C22.2 No. 60947-1:22, CSA C22.2 No. 60947-4-1:22
Rated Operational Voltage:
Main Circuit 690 V
Rated Frequency (f):
Control Circuit 50 / 60 Hz
Main Circuit 50 / 60 Hz
Control Circuit 50 / 60 Hz
Main Circuit 50 / 60 Hz
Conventional Free-air Thermal Current (Ith):
acc. to IEC 60947-4-1, Open Contactors Θ = 40 °C 105 A
Rated Operational Current AC-1 (Ie):
(690 V) 40 °C 70 A
(690 V) 60 °C 60 A
(690 V) 70 °C 50 A
(690 V) 40 °C 70 A
(690 V) 60 °C 60 A
(690 V) 70 °C 50 A
Rated Operational Current AC-3 (Ie):
(415 V) 60 °C 40 A
(440 V) 60 °C 40 A
(500 V) 60 °C 35 A
(690 V) 60 °C 25 A
(380 / 400 V) 60 °C 40 A
(220 / 230 / 240 V) 60 °C 40 A
(415 V) 60 °C 40 A
(440 V) 60 °C 40 A
(500 V) 60 °C 35 A
(690 V) 60 °C 25 A
(380 / 400 V) 60 °C 40 A
(220 / 230 / 240 V) 60 °C 40 A
Rated Operational Power AC-3 (Pe):
(415 V) 22 kW
(440 V) 22 kW
(500 V) 22 kW
(690 V) 22 kW
(380 / 400 V) 18.5 kW
(220 / 230 / 240 V) 11 kW
(415 V) 22 kW
(440 V) 22 kW
(500 V) 22 kW
(690 V) 22 kW
(380 / 400 V) 18.5 kW
(220 / 230 / 240 V) 11 kW
Rated Short-time Withstand Current Low Voltage (Icw):
at 40 °C Ambient Temp, in Free Air, from a Cold State 10 s 600 A
at 40 °C Ambient Temp, in Free Air, from a Cold State 15 min 110 A
at 40 °C Ambient Temp, in Free Air, from a Cold State 1 min 250 A
at 40 °C Ambient Temp, in Free Air, from a Cold State 1 s 1000 A
at 40 °C Ambient Temp, in Free Air, from a Cold State 30 s 350 A
at 40 °C Ambient Temp, in Free Air, from a Cold State 10 s 600 A
at 40 °C Ambient Temp, in Free Air, from a Cold State 15 min 110 A
at 40 °C Ambient Temp, in Free Air, from a Cold State 1 min 250 A
at 40 °C Ambient Temp, in Free Air, from a Cold State 1 s 1000 A
at 40 °C Ambient Temp, in Free Air, from a Cold State 30 s 350 A
Maximum Breaking Capacity:
cos phi=0.45 (cos phi=0.35 for Ie > 100 A) at 440 V 950 A
cos phi=0.45 (cos phi=0.35 for Ie > 100 A) at 690 V 600 A
cos phi=0.45 (cos phi=0.35 for Ie > 100 A) at 440 V 950 A
cos phi=0.45 (cos phi=0.35 for Ie > 100 A) at 690 V 600 A
Rated Insulation Voltage (Ui):
acc. to IEC 60947-4-1 690 V
acc. to UL/CSA 600 V
acc. to IEC 60947-4-1 690 V
acc. to UL/CSA 600 V
Rated Impulse Withstand Voltage (Uimp):
6 kV
Maximum Electrical Switching Frequency:
(AC-1) 600 cycles per hour
Maximum Mechanical Switching Frequency:
3600 cycles per hour
Rated Control Circuit Voltage (Uc):
50 Hz 100 ... 250 V
60 Hz 100 ... 250 V
DC Operation 100 ... 250 V
50 Hz 100 ... 250 V
60 Hz 100 ... 250 V
DC Operation 100 ... 250 V
Coil Consumption:
Average Holding Value 50 / 60 Hz 4 V·A
Average Holding Value 50 Hz 4 V·A
Average Holding Value 60 Hz 4 V·A
Average Holding Value DC 2 W
Average Holding Value, from Warm State 2 W
Average Holding Value 50 / 60 Hz 4 V·A
Average Holding Value 50 Hz 4 V·A
Average Holding Value 60 Hz 4 V·A
Average Holding Value DC 2 W
Average Holding Value, from Warm State 2 W
Power Loss:
at Rated Operating Conditions AC-1 per Pole 3 W
at Rated Operating Conditions AC-3 per Pole 1 W
at Rated Operating Conditions AC-1 per Pole 3 W
at Rated Operating Conditions AC-3 per Pole 1 W
Mounting on DIN Rail:
TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715
Mounting by Screws (not supplied) :
2 x M4 or 2 x M6 Screws Placed Diagonally
Connecting Capacity Main Circuit:
Flexible with Ferrule 1/2x 4 ... 35 mm²
Flexible with Insulated Ferrule 1/2x 4 ... 35 mm²
Rigid Stranded 1/2x 6 ... 35 mm²
Flexible with Ferrule 1/2x 4 ... 35 mm²
Flexible with Insulated Ferrule 1/2x 4 ... 35 mm²
Rigid Stranded 1/2x 6 ... 35 mm²
Connecting Capacity Control Circuit:
Flexible with Ferrule 1/2x 0.75 ... 2.5 mm²
Flexible with Insulated Ferrule 1x 0.75 ... 2.5 mm²
Flexible with Insulated Ferrule 2x 0.75 ... 1.5 mm²
Rigid Solid 1/2x 1 ... 2.5 mm²
Rigid Stranded 1/2x 1 ... 2.5 mm²
Flexible with Ferrule 1/2x 0.75 ... 2.5 mm²
Flexible with Insulated Ferrule 1x 0.75 ... 2.5 mm²
Flexible with Insulated Ferrule 2x 0.75 ... 1.5 mm²
Rigid Solid 1/2x 1 ... 2.5 mm²
Rigid Stranded 1/2x 1 ... 2.5 mm²
Wire Stripping Length:
Control Circuit 10 mm
Main Circuit 16 mm
Control Circuit 10 mm
Main Circuit 16 mm
Degree of Protection:
acc. to IEC 60529, IEC 60947-1, EN 60529 Coil Terminals IP20
acc. to IEC 60529, IEC 60947-1, EN 60529 Main Terminals IP10
acc. to IEC 60529, IEC 60947-1, EN 60529 Coil Terminals IP20
acc. to IEC 60529, IEC 60947-1, EN 60529 Main Terminals IP10
Recommended Screw Driver:
Pozidriv PZ
Tightening Torque:
Control Circuit 1.2 N·m
Main Circuit 4 N·m
Control Circuit 1.2 N·m
Main Circuit 4 N·m
Terminal Type:
Screw Terminals
Product Name:
Block Contactor

Technical UL/CSA

Maximum Operating Voltage UL/CSA:
Main Circuit 600 V
General Use Rating UL/CSA:
(600 V AC) 60 A
Connecting Capacity Main Circuit UL/CSA:
Rigid Stranded 1/2x 10-2 AWG
Connecting Capacity Control Circuit UL/CSA:
Rigid Solid 1/2x 18-14 AWG
Rigid Stranded 1/2x 18-14 AWG
Rigid Solid 1/2x 18-14 AWG
Rigid Stranded 1/2x 18-14 AWG
Tightening Torque UL/CSA:
Control Circuit 11 in·lb
Main Circuit 35 in·lb
Control Circuit 11 in·lb
Main Circuit 35 in·lb
Full Load Amps Motor Use:
(120 V AC) Single Phase 3 A
(200 ... 208 V AC) Three Phase 10 A
(220 ... 240 V AC) Three Phase 15 A
(240 V AC) Single Phase 7-1/2 A
(440 ... 480 V AC) Three Phase 30 A
(550 ... 600 V AC) Three Phase 40 A
(120 V AC) Single Phase 3 A
(200 ... 208 V AC) Three Phase 10 A
(220 ... 240 V AC) Three Phase 15 A
(240 V AC) Single Phase 7-1/2 A
(440 ... 480 V AC) Three Phase 30 A
(550 ... 600 V AC) Three Phase 40 A

Environmental

Ambient Air Temperature:
Close to Contactor for Storage -60 ... +80 °C
Near Contactor for Operation in Free Air -40 ... 70 °C
Close to Contactor for Storage -60 ... +80 °C
Near Contactor for Operation in Free Air -40 ... 70 °C
Climatic Withstand:
Category B according to IEC 60947-1 Annex Q
Maximum Operating Altitude Permissible:
Without Derating 3000 m
Resistance to Vibrations:
3g Closed Position & 2g Open Position 5 ... 300 Hz
Pollution Degree:
3

Material Compliance

Conflict Minerals Reporting Template (CMRT):
RoHS Status:
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
SCIP:
c3290553-ec7e-4413-8422-b049cb613ccd France
Simplified SCIP:
af1b7c66-12d7-4952-9e5e-0e809931c522 Germany
588470e7-0826-4e92-ae23-f3f6f47db275 Norway
39ae7acf-5ca4-4c3c-9053-f0392d2a2c22 Hungary
e9051e8f-307c-455d-bc45-7f982f3b6249 Estonia
b9a24bb9-6d1c-4ab7-b7e7-beaf208d19a0 Greece
ca2c0146-8e95-491c-be8f-0f704b70bb04 Portugal
e2f91347-0426-410f-a2d6-b404c0677dfe Bulgaria
e4491358-22f3-4fbd-9dfe-10207d8d78a0 Poland
ed7f129b-6024-4ea7-b7df-ee1e3c60c66f Finland
f9c9f704-f9ec-4453-be8c-a29af6de5c30 Belgium
9af4da5b-09ff-46b1-a43b-02bbcaf695a8 Italy
979e582d-3243-45c3-b2c1-c7add6a7cb4d Germany
122eadde-5156-4574-adcc-413677f6ae8d Denmark
ed1cc105-b380-402e-9f23-dc7a44dc0515 Germany
d70f71e2-96c7-496c-a33f-c69bc805adba Croatia
b8d2172c-c48f-4ebb-a4ba-d57ba7538ce8 Czech Republic
2f9a6b5b-d608-471f-bd66-1c0b3be53d93 Poland
9c8756fc-3f6e-4e7d-a36b-547adc0d68b1 Netherlands
7aa6724f-87a5-4d2c-84ed-9e5650f25dfe Sweden
972baf47-decc-49a9-ac7f-a5c35ff81d90 Poland
054ea2e7-48af-4441-bd12-b155ca364df2 France
60301d12-122b-4c9b-a6c1-63b9594f9328 Sweden
354df93b-693d-46bb-9426-d9fd84027f98 Germany
dd792a33-4918-4577-8d32-cc6ee309d03e Germany
85428e11-4e12-4abd-8405-092267b1c612 Hungary
62d5cca5-f098-4528-831a-05f59ecf38a1 Spain
7aea1ebf-ba76-42c7-9a41-04f07b6b5eb3 Belgium
af1b7c66-12d7-4952-9e5e-0e809931c522 Germany
588470e7-0826-4e92-ae23-f3f6f47db275 Norway
39ae7acf-5ca4-4c3c-9053-f0392d2a2c22 Hungary
e9051e8f-307c-455d-bc45-7f982f3b6249 Estonia
b9a24bb9-6d1c-4ab7-b7e7-beaf208d19a0 Greece
ca2c0146-8e95-491c-be8f-0f704b70bb04 Portugal
e2f91347-0426-410f-a2d6-b404c0677dfe Bulgaria
e4491358-22f3-4fbd-9dfe-10207d8d78a0 Poland
ed7f129b-6024-4ea7-b7df-ee1e3c60c66f Finland
f9c9f704-f9ec-4453-be8c-a29af6de5c30 Belgium
WEEE B2C / B2B:
Business To Business
WEEE Category:
5. Small Equipment (No External Dimension More Than 50 cm)

ABB EcoSolutions

ABB EcoSolutions:
Yes
End Of Life Disassembling Instructions:
Sustainable Material Content in Packaging (wt. %):
FSC Recycled Paper - 94.6 %
Sustainable Material Content in Product (wt. %):
Recycled Metal - 28.2 %

Certificates and Declarations

A2L Certificate – UL:
BV Certificate:
UL Listing Card:

Container Information

Package Level 1 Units:
box 1 piece
Package Level 1 Width:
150 mm
Package Level 1 Depth / Length:
150 mm
Package Level 1 Height:
103 mm
Package Level 1 Gross Weight:
1.27 kg
Package Level 1 EAN:
3471523133532
Package Level 2 Units:
box 8 piece
Package Level 2 Width:
250 mm
Package Level 2 Depth / Length:
300 mm
Package Level 2 Height:
300 mm
Package Level 2 Gross Weight:
10.16 kg

External Classifications and Standards

Object Classification Code:
Q
ETIM 7:
EC000066 - Power contactor, AC switching
ETIM 8:
EC000066 - Power contactor, AC switching
ETIM 9:
EC000066 - Power contactor, AC switching
eClass:
V11.0 : 27371003
UNSPSC:
39121529
IDEA Granular Category Code (IGCC):
4758 >> Iec Contactors
E-Number (Finland):
3707257
E-Number (Sweden):
3210298
1SDA066325R1 ABB SOR-C XT1..XT4 F/P 220-240Vac-220-250Vdc
ABB 1SDA066325R1 ABB SOR-C XT1..XT4 F/P 220-240Vac-220-250Vdc
1,109.00 kr
Only 8 units left

Material Compliance

RoHS Status:
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Conflict Minerals Reporting Template (CMRT):
Toxic Substances Control Act - TSCA:

Environmental

Environmental Information:

Ordering

Order Code US and Canada:
KXTASORCFPE
E-Number (Finland):
3638711
E-Number (Norway):
4384929
E-Number (Sweden):
3182061
EAN:
8015644692193
Minimum Order Quantity:
1 piece
Customs Tariff Number:
85362090

Dimensions

Product Net Weight:
0.114 kg

Container Information

Package Level 1 Units:
box 1 piece
Package Level 1 Width:
110 mm
Package Level 1 Height:
60 mm
Package Level 1 Depth / Length:
140 mm
Package Level 1 Gross Weight:
0.12 kg
Package Level 1 EAN:
8015644692193

Additional Information

Product Main Type:
Accessories for Tmax XT
Product Name:
Accessory
Product Type:
Accessory
Suitable For:
XT1, XT2, XT3, XT4
Suitable for Product Class:
SACE Tmax XT

Technical

Configuration Type:
Loose or configurable
Current Type:
AC/DC
Order Multiple:
1 piece
Rated Voltage (Ur):
220 ... 240 V AC
220 ... 250 V DC
220 ... 240 V AC
220 ... 250 V DC
Standards:
IEC60947-2
UL489
IEC60947-2
UL489

External Classifications and Standards

ETIM 9:
EC002483 - Switch spool for power circuit breaker
ETIM 10:
EC002483 - Switch spool for power circuit breaker
IDEA Granular Category Code (IGCC):
4879 >> Shunt release (for power circuit breaker)
Object Classification Code:
Q
UNSPSC:
39121601
WEEE Category:
5. Small Equipment (No External Dimension More Than 50 cm)
eClass:
V11.1 : 27370421
ACS-CP-U ABB
ABB ACS-CP-U ABB
4,066.00 kr
Only 4 units left

Alpha numeric control panel with LCD display for ABB ACS850, ACSM1, ACQ810 Drives.
1SFA894006R7000 ABB - PST60-600-70
ABB 1SFA894006R7000 ABB - PST60-600-70
26,393.00 kr
Only 2 units left

Ordering

Minimum Order Quantity:
1 piece
Customs Tariff Number:
8503009999

Popular Downloads

Data Sheet, Technical Information:

Dimensions

Product Net Width:
160 mm
Product Net Height:
260 mm
Product Net Depth / Length:
196 mm
Product Net Weight:
5 kg

Technical

Rated Operational Voltage:
Main Circuit 208 ... 600 V AC
Rated Control Supply Voltage (Us):
100 ... 250 V AC
Rated Control Circuit Voltage (Uc):
DC Operation 24 V
Rated Frequency (f):
50/60 Hz
Main Circuit 50 / 60 Hz
50/60 Hz
Main Circuit 50 / 60 Hz
Rated Operational Power - In-Line Connection (Pe):
(400 V) 30 kW
(500 V) 37 kW
(400 V) 30 kW
(500 V) 37 kW
Rated Operational Current - In-Line Connection (Ie):
60 A
Rated Operational Power - Inside Delta Connection:
at 400 V 55 kW
at 500 V 75 kW
at 400 V 55 kW
at 500 V 75 kW
Rated Operational Current - Inside Delta Connection:
105 A
Service Factor Percentage:
115 %
Overload Protection:
Build-in electronic overload protection
Integrated Electronic Overload:
Yes
Starting Capacity at Maximum Rated Current Ie:
3xIe for 15s
Ramp Time:
0 ... 120 second [unit of time]
1 ... 120 second [unit of time]
0 ... 120 second [unit of time]
1 ... 120 second [unit of time]
Initial Voltage During Start:
30 ... 70 %
Step Down Voltage Special Ramp:
100 ... 30 %
Current Limit Function:
1.5 ... 7xIe
Switch for Inside Delta Connection:
Yes
Run Signal Relay:
Yes
By-pass Signal Relay:
Yes
Fault Signal Relay:
Yes
Overload Signal Relay:
Yes
Analog Outputs:
0…10 volts
0…20 mA
4…20 mA
0…10 volts
0…20 mA
4…20 mA
Signal Indication Ready to Start/Standby ON (LED):
Green
Signal Indication Protection (LED):
Yellow
Signal Indication Fault (LED):
Red
Number of Starts Per Hour at 3.5*Ie for 7 sec. 50% ON Time 50% OFF Time:
30
Communication:
FiledBusPlug(Standard)
Degree of Protection:
acc. to IEC 60529, IEC 60947-1, EN 60529 Main Terminals IP10
Terminal Type:
Screw Terminals
Connecting Capacity Main Circuit:
Rigid 1 x 10 ... 95 mm²
Rigid 2 x 6 ... 35 mm²
Rigid 1 x 10 ... 95 mm²
Rigid 2 x 6 ... 35 mm²
Connecting Capacity Control Circuit:
Rigid 1 x 2.5 mm²
Rigid 2 x 1.5 mm²
Rigid 1 x 2.5 mm²
Rigid 2 x 1.5 mm²
Connecting Capacity Supply Circuit:
Rigid 1 x 2.5
Tightening Torque:
Control Circuit 0.5 N·m
Main Circuit 6 N·m
Supply Circuit 0.5 N·m
Control Circuit 0.5 N·m
Main Circuit 6 N·m
Supply Circuit 0.5 N·m
Product Main Type:
PST60

Environmental

Ambient Air Temperature:
Operation 0 ... +50 °C
Storage -25 ... +70 °C
Operation 0 ... +50 °C
Storage -25 ... +70 °C

Material Compliance

Conflict Minerals Reporting Template (CMRT):
RoHS Information:
WEEE B2C / B2B:
Business To Business
WEEE Category:
5. Small Equipment (No External Dimension More Than 50 cm)

Certificates and Declarations

Declaration of Conformity - CE:

Container Information

Package Level 1 Width:
190 mm
Package Level 1 Depth / Length:
360 mm
Package Level 1 Height:
280 mm
Package Level 1 Gross Weight:
6.2 kg
Package Level 1 EAN:
7320500255544
Package Level 1 Units:
1 piece

External Classifications and Standards

Object Classification Code:
Q
ETIM 7:
EC000640 - Soft starter
ETIM 8:
EC000640 - Soft starter
ETIM 9:
EC000640 - Soft starter
eClass:
V11.0 : 27370907
UNSPSC:
39121521
1SDA066392R1 ABB UVR XT1..XT4 220-240Vac-220-250Vdc
ABB 1SDA066392R1 ABB UVR XT1..XT4 220-240Vac-220-250Vdc
1,018.00 kr
Only 10 units left

Material Compliance

RoHS Status:
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Conflict Minerals Reporting Template (CMRT):
Toxic Substances Control Act - TSCA:

Environmental

Environmental Information:

Ordering

Order Code US and Canada:
KXTAUVR5
E-Number (Finland):
3638716
E-Number (Norway):
4381351
EAN:
8015644692513
Minimum Order Quantity:
1 piece
Customs Tariff Number:
85389099

Dimensions

Product Net Weight:
0.107 kg

Container Information

Package Level 1 Units:
box 1 piece
Package Level 1 Width:
110 mm
Package Level 1 Height:
60 mm
Package Level 1 Depth / Length:
140 mm
Package Level 1 Gross Weight:
0.113 kg
Package Level 1 EAN:
8015644692513

Additional Information

Product Main Type:
Accessories for Tmax XT
Product Name:
Accessory
Product Type:
Accessory
Suitable For:
XT1, XT2, XT3, XT4
Suitable for Product Class:
SACE Tmax XT

Technical

Configuration Type:
Loose or configurable
Current Type:
AC/DC
Order Multiple:
1 piece
Rated Voltage (Ur):
220 ... 240 V AC
220 ... 250 V DC
220 ... 240 V AC
220 ... 250 V DC
Standards:
IEC60947-2
UL489
IEC60947-2
UL489

External Classifications and Standards

ETIM 9:
EC001022 - Under voltage coil
ETIM 10:
EC001022 - Under voltage coil
IDEA Granular Category Code (IGCC):
4148 >> Under voltage coil
Object Classification Code:
Q
UNSPSC:
39121010
WEEE Category:
5. Small Equipment (No External Dimension More Than 50 cm)
eClass:
V11.1 : 27370417
NDBU-85C ABB
ABB NDBU-85C ABB
12,516.00 kr
Only 5 units left

Branching Unit For ACS800, DCS800-S0 and DCS800-EP
1SDA066433R1 ABB AUX-C 2Q+1SY 250Vac/dc XT1..XT4 F/P
ABB 1SDA066433R1 ABB AUX-C 2Q+1SY 250Vac/dc XT1..XT4 F/P
3,037.00 kr
Only 1 unit left

Material Compliance

RoHS Status:
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Conflict Minerals Reporting Template (CMRT):
Toxic Substances Control Act - TSCA:

Environmental

Environmental Information:

Ordering

Order Code US and Canada:
KXTAAXC2QSYFP
E-Number (Finland):
3638669
E-Number (Norway):
4384917
EAN:
8015644692704
Minimum Order Quantity:
1 piece
Customs Tariff Number:
85389099

Dimensions

Product Net Weight:
0.127 kg

Container Information

Package Level 1 Units:
box 1 piece
Package Level 1 Width:
110 mm
Package Level 1 Height:
60 mm
Package Level 1 Depth / Length:
140 mm
Package Level 1 Gross Weight:
0.134 kg
Package Level 1 EAN:
8015644692704

Additional Information

Product Main Type:
Accessories for Tmax XT
Product Name:
Accessory
Product Type:
Accessory
Suitable For:
XT1
XT2
XT3
XT4
XT5
XT6
XT1
XT2
XT3
XT4
XT5
XT6
Suitable for Product Class:
SACE Tmax XT

Technical

Configuration Type:
Loose or configurable
Number of Auxiliary Contacts CO (SPDT):
3
Order Multiple:
1 piece
Standards:
IEC60947-2
UL489
IEC60947-2
UL489

External Classifications and Standards

ETIM 9:
EC000041 - Auxiliary contact block
ETIM 10:
EC000041 - Auxiliary contact block
IDEA Granular Category Code (IGCC):
4743 >> Auxiliary contact block
Object Classification Code:
Q
UNSPSC:
39121522
WEEE Category:
5. Small Equipment (No External Dimension More Than 50 cm)
eClass:
V11.1 : 27371302

Recently viewed
