Main
| Characteristic | Value(s) |
|---|---|

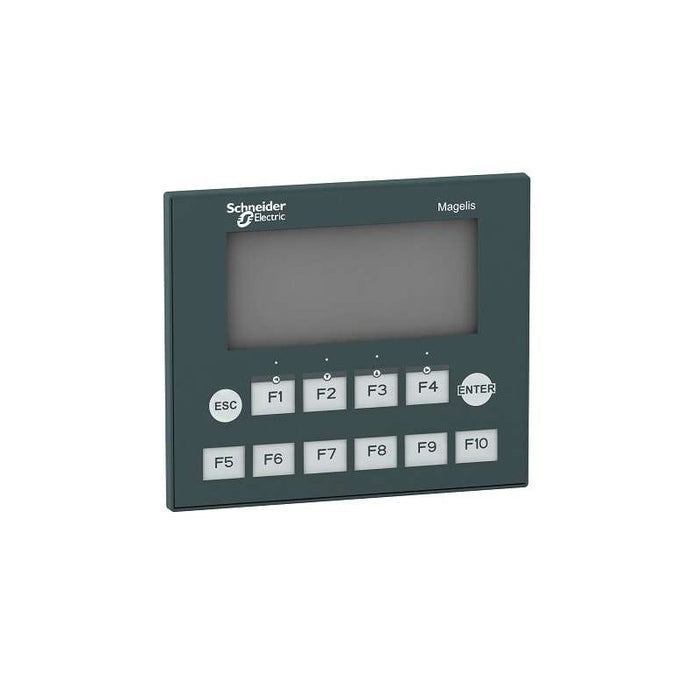

| Range of Product | Magelis XBTRT |
| Display Resolution | 198 x 80 pixels |
| Software Type | Configuration software |
| Software Designation | Vijeo Designer Lite |
| Operating System | Windows |
Complementary
| Characteristic | Value(s) |
|---|---|
| Display Type | Extra-bright matrix backlit LCD |
| Touch panel | Matrix |
| Touch sensitive zone | 11 x 5 cells |
| Character font | Latin Chinese (simplified Chinese) Cyrillic Katakana Greek |
| Number of key | 12 |
| Number of fixed keys | 2 |
| Number of customisable keys | 10 |
| Number of pages | 256 alarm pages 200 application pages |
| Memory type | Flash |
| Memory capacity | 512 KB |
| Integrated connection type | Serial link female RJ45, asynchronous RS232C/RS485)point-to-point |
| Realtime clock | Access to the PLC real-time clock |
| Range Compatibility | Modicon M340 Modicon Premium Twido Modicon TSX Micro |
| Product mounting | Flush mounting |
| Fixing mode | By 4 spring clips (1.5 to 6 mm thick panel) |
| Display material | Polyester |
| Front material | PPT |
| Keypad material | Polyester |
| Marking | CE |
| Height | 4.6 in (118 mm) |
| Width | 5.4 in (137 mm) |
| Depth | 3.1 in (79 mm) |
| Cut-out dimensions | 119.6 (+/- 0.5) x 105.2 (+/- 0.4) mm |
| Product Weight | 1.21 lb(US) (0.55 kg) |
