Main
| Characteristic | Value(s) |
|---|---|
| Range of Product | Altivar |
| Product or Component Type | Variable speed drive |
| Product Specific Application | Simple machine |

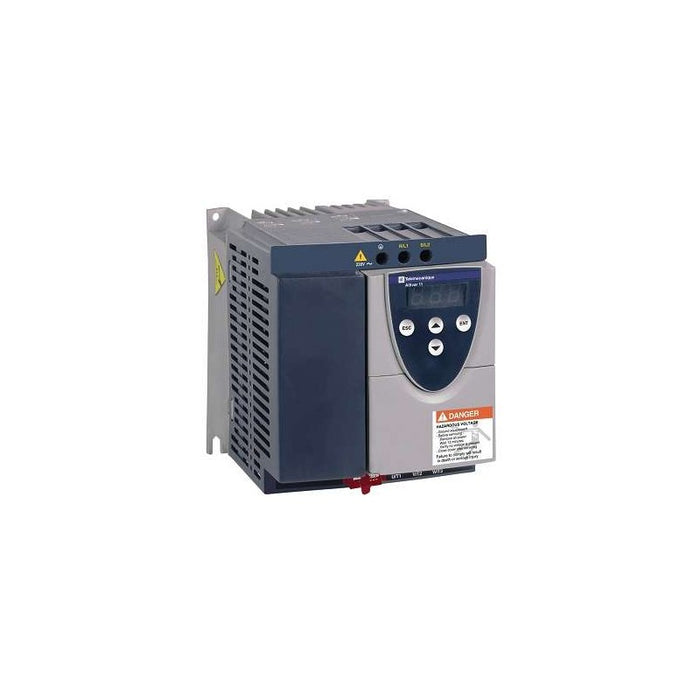

| Component name | ATV11 |
| Application market | USA market |
| Assembly style | With heat sink |
| EMC filter | Without EMC filter |
| Built-in fan | With |
| Phase | Single phase |
| [Us] rated supply voltage | 200...240 V - 15...10 % |
| Supply frequency | 50...60 Hz - 5...5 % |
| Motor power kW | 0.75 kW |
| Maximum Horse Power Rating | 1 hp |
| Line current | 9.9 A 208 V, Isc = 1 kA |
| Nominal output current | 4.6 A 230 V motor 4 kHz |
| Maximum transient current | 6.3 A 60 s |
| Power dissipation in W | 43 W at nominal load |
| Switching frequency | 2...16 kHz adjustable 4...16 kHz with derating factor |
| Braking torque | 150 % of nominal motor torque with braking resistor at high inertia 20 % of nominal motor torque without braking resistor at no load 80 % of nominal motor torque with braking resistor at no load |
| Asynchronous motor control profile | Sensorless flux vector control with PWM type motor control signal |
| Electrical connection | Terminal 1.5 mm², AWG 14 AI1, RA-RC, LI1...LI4, DO) Terminal 1.5 mm², AWG 14 L1, L2, L3, U, V, W, PA, PC) |
| Supply | Internal supply for logic inputs 15 V +/- 15 %) 100 mA overload and short-circuit protection Internal supply for reference potentiometer (2.2 to 10 kOhm) 5...5.25 VDC 10 mA overload and short-circuit protection |
| Analogue input type | Configurable current AI1 4...20 mA 250 Ohm without adding resistor Configurable voltage AI1 0...5 V 40000 Ohm only with internal supply Configurable current AI1 0...20 mA 250 Ohm Configurable voltage AI1 0...10 V 40000 Ohm |
| Sampling duration | AI1 20 ms analog LI1...LI4 20 ms discrete |
| Response time | 20 ms DO |
| Linearity error | DO +/- 1 % output AI +/- 5 % input |
| Discrete input type | Assignable Ll1 forward 5000 Ohm 15 V 24 V Assignable Ll2 reverse 5000 Ohm 15 V 24 V Assignable Ll3/Ll4 4 preset speeds 5000 Ohm 15 V 24 V |
| Discrete input logic | Negative LI1...LI4), > 11 V, < 5 V Positive logic (source) LI1...LI4), < 5 V, > 11 V |
| Discrete output type | Assignable as external voltage DO 30 V max, 30 mA Assignable as open collector logic output DO 100 Ohm, 50 mA max Factory set as PWM open collector output DO at 2 kHz 10 mA max Protected relay logic RA-RC 1 NO Assignable as internal voltage DO |
| Minimum switching current | RA-RC 10 mA 24 V DC |
| Maximum switching current | 2 A 250 V AC inductive cos phi = 0.4 7 ms RA-RC 2 A 30 V DC inductive cos phi = 0.4 7 ms RA-RC 5 A 250 V AC resistive cos phi = 1 0 ms RA-RC 5 A 30 V DC resistive cos phi = 1 0 ms RA-RC |
| Protection type | Line supply overvoltage drive Line supply undervoltage drive Overcurrent between output phases and earth drive Overheating protection drive Short-circuit between motor phases drive Thermal protection motor |
| Frequency resolution | Display unit 0.1 Hz Analog input converter A/D, 10 bits |
| Electromagnetic compatibility | 1.2/50 µs - 8/20 µs surge immunity test level 3 conforming to EN/IEC 61000-4-5 Electrical fast transient/burst immunity test level 4 conforming to EN/IEC 61000-4-4 Electrostatic discharge immunity test level 3 conforming to EN/IEC 61000-4-2 Radiated radio-frequency electromagnetic field immunity test level 3 conforming to EN/IEC 61000-4-3 |
| Maximum motor cable length | 65.6 ft (20 m) with additional EMC filter from 2 to 16 kHz EN 55011 class A group 1 16.4 ft (5 m) with additional EMC filter from 2 to 16 kHz EN 55011 class B |
| Vibration resistance | 1 gn (f= 13â¦200 Hz) conforming to EN/IEC 60068-2-6 1.5 mm peak to peak (f= 3â¦13 Hz) conforming to EN/IEC 60068-2-6 |
| Shock resistance | 15 gn 11 ms EN/IEC 60068-2-27 |
| Relative humidity | 5â¦93 % without condensation IEC 60068-2-3 5â¦93 % without dripping water IEC 60068-2-3 |
| Ambient air temperature for operation | 14â¦104 °F (-10â¦40 °C) without derating 104â¦122 °F (40â¦50 °C) by removing the protective cover from the top of the drive 122â¦140 °F (50â¦60 °C) by removing the protective cover from the top of the drive with current derating of 2.2 % per °C |
| Operating altitude | <= 3280.84 ft (1000 m) without derating > 3280.84 ft (1000 m) with current derating 1 % per 100 m |
Complementary
| Characteristic | Value(s) |
|---|---|
| Product destination | Asynchronous motors |
| Supply voltage limits | 170â¦264 V |
| Network frequency limits | 47.5â¦63 Hz |
| Speed drive output frequency | 0â¦200 Hz |
| Nominal switching frequency | 4 kHz |
| Speed range | 1â¦20 |
| Transient overtorque | 150...170 % of nominal motor torque |
| Regulation loop | Possible correction for machines with high resistive torque/inertia/fast cycles Factory-set with the speed loop stability and gain Adjustable frequency |
| Motor slip compensation | Preset in factory Adjustable |
| Prospective line Isc | 1 kA |
| Output voltage | <= 2 x power supply voltage |
| Insulation | Electrical between power and control |
| Analogue input number | 1 |
| Discrete input number | 4 |
| Discrete output number | 2 |
| Acceleration and deceleration ramps | Linear from 0 to 99.9 s |
| Braking to standstill | By DC injection |
| Insulation resistance | >= 500 mOhm |
| Marking | CE |
| Operating position | Vertical +/- 10 degree |
| CAD overall width | 2.8 in (72 mm) |
| CAD overall height | 5.8 in (147 mm) |
| CAD overall depth | 5.4 in (138 mm) |
| Outer dimension | 142 x 72 x 101 mm |
| Product Weight | 4.0 lb(US) (1.8 kg) |
