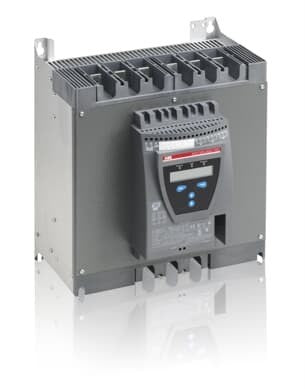

1SFA894012R7000 ABB - PST210-600-70
ABB General Automation / General Automation

1SFA894012R7000 ABB - PST210-600-70

Ordering

Minimum Order Quantity:
1 piece
Customs Tariff Number:
8503009999

Popular Downloads

Data Sheet, Technical Information:

Dimensions

Product Net Width:
360 mm
Product Net Height:
420 mm
Product Net Depth / Length:
270 mm
Product Net Weight:
21.5 kg

Technical

Rated Operational Voltage:
Main Circuit 208 ... 600 V AC
Rated Control Supply Voltage (Us):
100 ... 250 V AC
Rated Control Circuit Voltage (Uc):
DC Operation 24 V
Rated Frequency (f):
50/60 Hz
Main Circuit 50 / 60 Hz
50/60 Hz
Main Circuit 50 / 60 Hz
Rated Operational Power - In-Line Connection (Pe):
(400 V) 110 kW
(500 V) 132 kW
(400 V) 110 kW
(500 V) 132 kW
Rated Operational Current - In-Line Connection (Ie):
210 A
Rated Operational Power - Inside Delta Connection:
at 400 V 184 kW
at 500 V 250 kW
at 400 V 184 kW
at 500 V 250 kW
Rated Operational Current - Inside Delta Connection:
360 A
Service Factor Percentage:
115 %
Overload Protection:
Build-in electronic overload protection
Integrated Electronic Overload:
Yes
Starting Capacity at Maximum Rated Current Ie:
3xIe for 15s
Ramp Time:
0 ... 120 second [unit of time]
1 ... 120 second [unit of time]
0 ... 120 second [unit of time]
1 ... 120 second [unit of time]
Initial Voltage During Start:
30 ... 70 %
Step Down Voltage Special Ramp:
100 ... 30 %
Current Limit Function:
1.5 ... 7xIe
Switch for Inside Delta Connection:
Yes
Run Signal Relay:
Yes
By-pass Signal Relay:
Yes
Fault Signal Relay:
Yes
Overload Signal Relay:
Yes
Analog Outputs:
0…10 volts
0…20 mA
4…20 mA
0…10 volts
0…20 mA
4…20 mA
Signal Indication Ready to Start/Standby ON (LED):
Green
Signal Indication Protection (LED):
Yellow
Signal Indication Fault (LED):
Red
Number of Starts Per Hour at 3.5*Ie for 7 sec. 50% ON Time 50% OFF Time:
30
Communication:
FiledBusPlug(Standard)
Degree of Protection:
acc. to IEC 60529, IEC 60947-1, EN 60529 Main Terminals IP00
Terminal Type:
Main Circuit: Bars
Connecting Capacity Main Circuit:
Hole Diameter 10.2 mm
Width and Thickness 20x5 mm
Hole Diameter 10.2 mm
Width and Thickness 20x5 mm
Connecting Capacity Control Circuit:
Rigid 1 x 2.5 mm²
Rigid 2 x 1.5 mm²
Rigid 1 x 2.5 mm²
Rigid 2 x 1.5 mm²
Connecting Capacity Supply Circuit:
Rigid 1 x 2.5
Tightening Torque:
Control Circuit 0.5 N·m
Main Circuit 28 N·m
Supply Circuit 0.5 N·m
Control Circuit 0.5 N·m
Main Circuit 28 N·m
Supply Circuit 0.5 N·m
Product Main Type:
PST210

Environmental

Ambient Air Temperature:
Operation 0 ... +50 °C
Storage -25 ... +70 °C
Operation 0 ... +50 °C
Storage -25 ... +70 °C

Material Compliance

Conflict Minerals Reporting Template (CMRT):
RoHS Information:
WEEE B2C / B2B:
Business To Business
WEEE Category:
5. Small Equipment (No External Dimension More Than 50 cm)

Certificates and Declarations

Declaration of Conformity - CE:

Container Information

Package Level 1 Width:
400 mm
Package Level 1 Depth / Length:
475 mm
Package Level 1 Height:
310 mm
Package Level 1 Gross Weight:
23.1 kg
Package Level 1 EAN:
7320500255605
Package Level 1 Units:
1 piece

External Classifications and Standards

Object Classification Code:
Q
ETIM 7:
EC000640 - Soft starter
ETIM 8:
EC000640 - Soft starter
ETIM 9:
EC000640 - Soft starter
eClass:
V11.0 : 27370907
UNSPSC:
39121521
$0.00
1-year warranty
FREE WORDWIDE SHIPPING
Condition:
$0.00
$3,522.40
$0.00
